PIDG Nylon Butt Splice Terminal | 16 – 14 AWG, Blue

Product Description

PIDG terminals are designed for uniform reliability in the harshest circuit environments, especially where high vibration and movement become factors. These terminals consist of of a nylon or PVC insulated body, plus a metal sleeve which clamps to the wire adding support. The design of the wire barrel resists vibration while allowing the wire to bend in any direction without damaging the insulation or conductor.

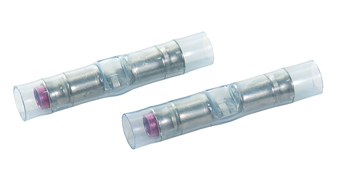

This butt splice terminal (EDMO# 327583) has blue insulation, and used on 16 – 14 AWG wire.

Specifications

• Length:
  32.13 mm
• Color:
  blue
• Contact Material:
  tin-plated copper
• Insulation:
  nylon
• Mounting Angle:
  straight
• Mounting Style:
  cable mount / free-hanging
• Product Type:
  butt splice
• Termination Style:
  crimp
• Voltage Rating:
  300V
• Wire Gauge:
  16 – 14 AWG

Product Codes

• Mfr Part No
  327583
• CSA
  LR7189
• ECCN
  EAR99
• SCHEDULE B CODE
  8536.90.4000
• UL
  YES

Documentation

• 327583 Envelope Drawing
