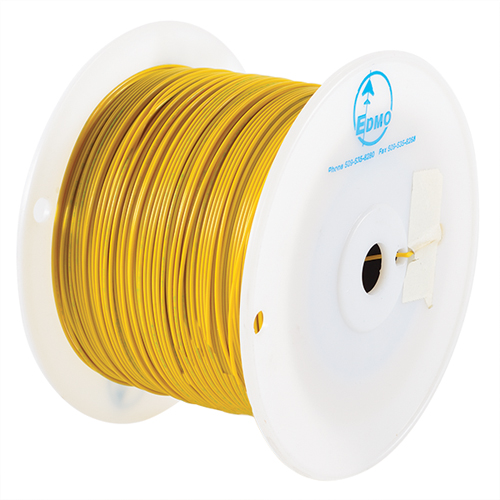

M22759/16 Extruded ETFE Tefzel Wire | 22 AWG, Yellow

M22759/16 Extruded ETFE Tefzel Wire | 22 AWG, Yellow

HARBOUR INDUSTRIES

Call For Pricing
In stock
EDMO # 22G/16-4
MFR Part # M22759/16-22-4
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

SAE AS22759 wire is a fluoropolymer insulated, single-conductor wire offering excellent performance for a variety of military aerospace and commercial applications. It has high performance and reliability in severe wind and moisture prone (SWAMP) zones such as engine nacelles as well as areas requiring overload stability, low smoke emission and fire resistance, such as aircraft cabins.

SAE AS22759/16 wire is designed for aerospace applications for commercial and military aircraft. It has a stranded tin-plated, copper conductor, Extruded ETFE dielectric, a rating of 600 volts and 150°C.

Features

  • This M22759/16 tefzel hook-up wire (EDMO# 22G/16-4) has a tin-plated, copper, 22 AWG conductor with extruded ETFE insolation, and colored yellow.
  • 600 volt rating
  • 150°C temperature rating
  • Excellent thermal stability
  • High reliability
  • High break strength and flex life
  • High abrasion resistance

Also Purchased

Specifications

  • AWG:
    22 AWG
  • Stranding:
    19/34
  • Conductor Diameter:
    0.030 in
  • Insulation Diameter:
    0.050 - 0.054 in
  • Weight:
    3.52 lb/mft
  • Max. Resistance @ 20°C:
    16.2 Ω/MFT

Related Products

Product Codes

  • Mfr Part No
    M22759/16-22-4
  • MIL SPEC
    M22759/16-22-4
  • ECCN
    EAR99
  • MIL SPEC
    M22759/16-22-4
  • SAE
    MIL-W-22759 REV E/SAE-AS22759
  • SCHEDULE B CODE
    8544.11.0030
