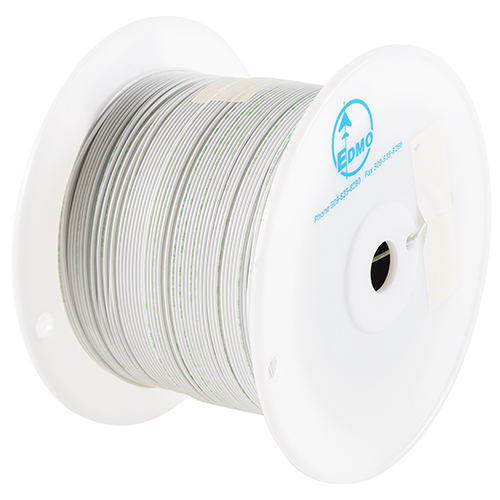

M22759/32 Cross-linked Modified ETFE Wire | 20 AWG, White

EDMO DISTRIBUTORS, INC

Call For Pricing

In stock

EDMO # 20G/32-9

MFR Part # M22759/32-20-9

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

SAE AS22759 wire is a fluoropolymer insulated, single-conductor wire offering excellent performance for a variety of military aerospace and commercial applications. It has high performance and reliability in severe wind and moisture prone (SWAMP) zones such as engine nacelles as well as areas requiring overload stability, low smoke emission and fire resistance, such as aircraft cabins.

SAE AS22759/32 wire is designed for aerospace and military purposes. This wire features a tin-plated copper connector with a lightweight, cross-linked modified ETFE insulation layer.

Features

This M22759/32 tefzel hook-up wire (EDMO# 20G/32-9) features a 20 AWG, tin-plated copper conductor rated for 150°C and 600V, and features a cross-linked modified ETFE insulation. Color white.
600 volt rating
150°C temperature rating
Excellent thermal stability
High reliability
High break strength and flex life
High abrasion resistance

Also Purchased

Specifications

Gauge:

20 AWG
Conductor Material:

tin-plated copper
Insulation Material:

150°C, fluoropolymer, cross-linked modified ETFE single insulation, lightweight
Stranding:

19/32
Conductor Size:

0.037 mm
Diameter:

0.039 mm, nominal
Weight:

4.3 lb/1000 ft
Resistance (@ 20°C):

9.88 Ω/1000 ft
