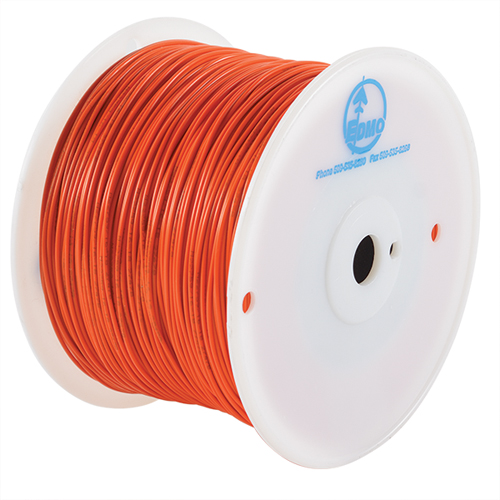

M22759/16 Extruded ETFE Tefzel Wire | 18 AWG, Orange

M22759/16 Extruded ETFE Tefzel Wire | 18 AWG, Orange

HARBOUR INDUSTRIES

Call For Pricing
In stock
EDMO # 18G/16-3
MFR Part # M22759/16-18-3
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

SAE AS22759 wire is a fluoropolymer–insulated, single-conductor wire offering excellent performance for a variety of military aerospace and commercial applications. It has high performance and reliability in severe wind and moisture prone (SWAMP) zones such as engine nacelles as well as areas requiring overload stability, low smoke emission and fire resistance, such as aircraft cabins.

SAE AS22759/16 has a tin-plated, copper conductor with a temperature rating of 135°C. Extruded ETFE insulation provides excellent performance in extreme commercial or aerospace functions where tight dimensions, radiation, chemicals, or solvents are encountered.

Features

  • This M22759/16 tefzel hook-up wire (EDMO# 18G/16-3) has a tin-plated, copper, 18 AWG conductor with extruded ETFE insolation, and colored orange.
  • 600 volt rating
  • 150°C temperature rating
  • Excellent thermal stability
  • High reliability
  • High break strength and flex life
  • High abrasion resistance

Also Purchased

Specifications

  • AWG:
    18 AWG
  • Stranding:
    19/30
  • Conductor Diameter:
    0.048 in
  • Insulation Diameter:
    0.069 - 0.073 in
  • Weight:
    7.65 lb/mft
  • Max. Resistance @ 20°C:
    6.23 Ω/MFT

Related Products

Product Codes

  • Mfr Part No
    M22759/16-18-3
  • MIL SPEC
    M22759/16-18-3
  • ECCN
    EAR99
  • MIL SPEC
    M22759/16-18-3
  • SCHEDULE B CODE
    8544.11.0050
