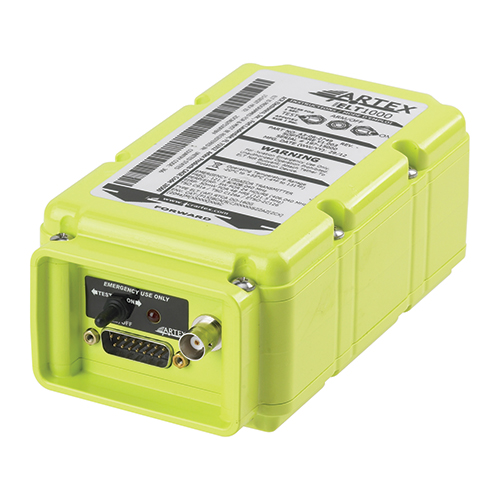

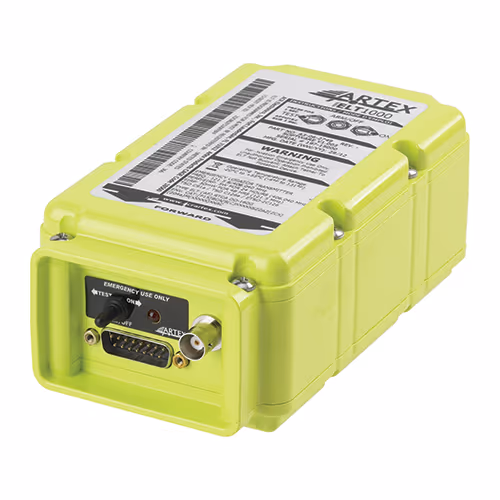

ELT 1000 Base Pack | 406MHz ELT 1000, Installation Hardware, Audio Buzzer, Mounting Tray

Product Description

The ELT 1000 is an excellent, cost-effective option for upgrading standard 121.5 MHz transmitters, which are no longer monitored by the Cospas-Sarsat System. The ELT 1000 is a single-output ELT that transmits on both 406 MHz and 121.5 MHz using the same RF output and one coax cable. The 406 signal alone produces an accurate position within 1.86 miles, and when paired with the aircraft’s navigation system via the built-in GPS interface, the ELT’s accuracy is further improved to about 110 yards. The GPS interface does not require aircraft power to operate; the remote switch only requires two wires, which reduces installation costs and labor.

*9600 standard baud rate unless otherwise requested.

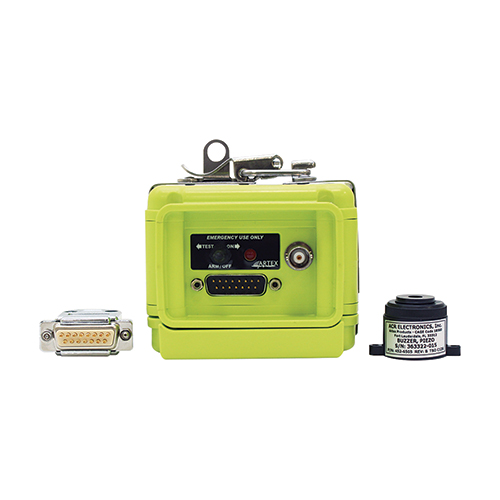

This ELT 1000 Base Pack (EDMO# 8202) includes the 406 MHz ELT 1000, installation hardware, audio buzzer, and mounting tray.

Specifications

• Weight:
  2.2 lb (Tray Included)
• Dimensions:
  6.6 x 2.9 x 3.7 in
• Operating Frequencies:
  406 MHz, 121.5 MHz ± 5 KHz, GPS Interface
• Output Power:
  406 MHz: 5W (440 ms/50 sec) for 24 hr @ -20°C to 55°C 121.5 MHz: 100mW for 50 hr @ -20°C to 55°C
• Activation:
  Automatic by 4.5 ft/sec (2.3 G) Primary G-switch or manual activation
• Self Test:
  G-switch enabled, 406 MHz power, antenna coax/connection, low battery
• Battery:
  6-year Lithium-Ion battery (LiSO4)
• Remote Switch:
  On/Arm/Test
• Operating Temperature:
  -20°C to 55°C
• Storage Temperature:
  -55°C to 85°C
• Connector:
  BNC Female
• GPS Interface:
  Built-in GPS Navigation
• Certification:
  Cospas-Sarsat, FAA TSO

Product Codes

• Mfr Part No
  8202
• ECCN
  7A994
• PROAPP
  PT1113CE/PQ1113CE
• PROG REQ
  ELT345_1000
• SCHEDULE B CODE
  8526.91.0070
• TSO
  c126b
