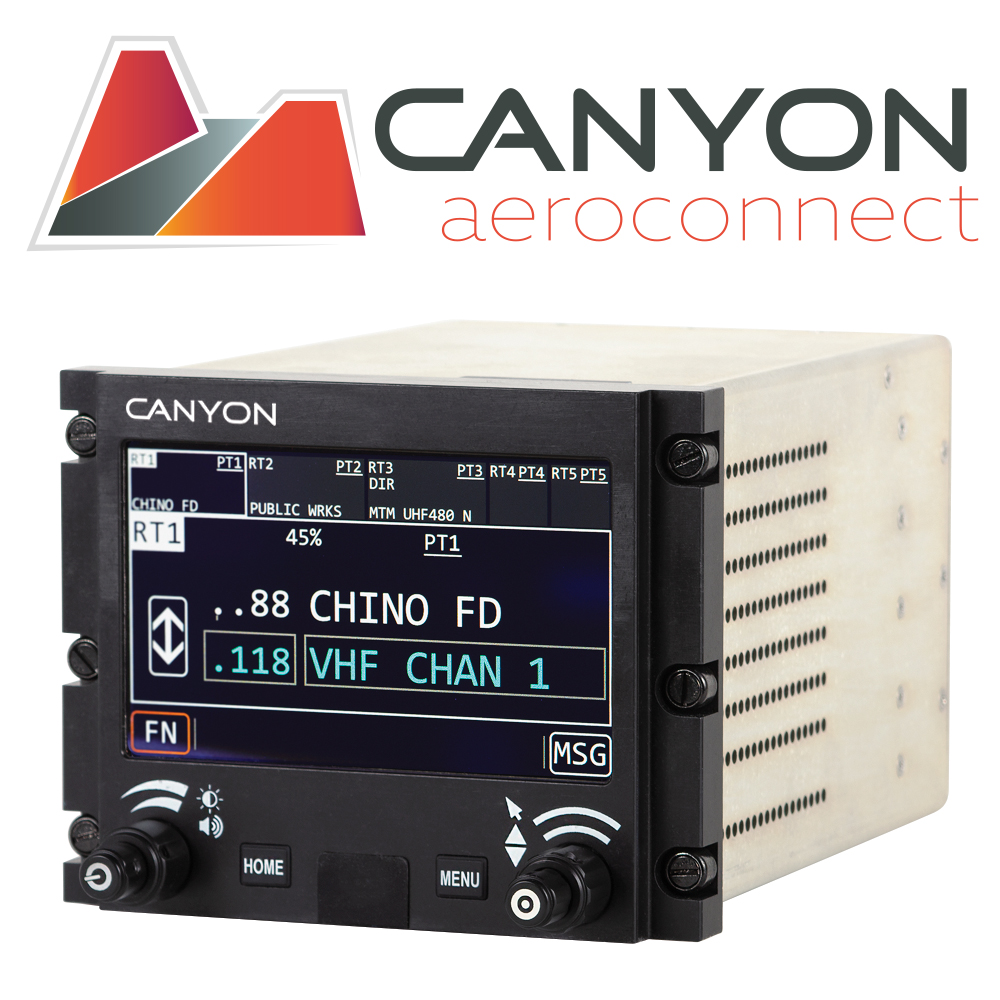

RT-7000 TACTICAL RADIO

The RT-7000 Panel Mount Tactical Radio satisfies all public safety and para-public voice communications needs. This unit supports 29.7 MHz to 960 MHz communications with up to three embedded and individual channels, thus providing the equivalent of three individual radios with the ability to support up to two external handheld radios. The RT-7000 provides P-25 Phase 1 and 2 digital modulation across the entire range. With the addition of up to two modules, it can also cover VHF, UHF, and 700/800 MHz public safety bands including trunking and Motorola-proprietary radio network features.

The RT-7000 is a software-defined device which can be easily be upgraded to meet evolving requirements for software and hardware without replacing the radio. This unit is equipped with an integrated audio and radio control display. All audio and radio functions can be controlled using either the touchscreen display or the dual concentric front panel knobs.

FEATURES

• Trunking: P25 Phase 1 & 2, SmartZone, SmartNet, OmniLink
• P25 OTAR
• Multi-key FIPS-140-2 encryption
• Three embedded internal radio modules can be any combination of:
  - Canyon wideband transceiver modules:
    29.7–960 MHz AM/FM, P25 conventional
  - Motorola APX-8000 modules
  - SAR (Search and Rescue) module
• Easy, embedded relay/simulcast across two to five transceivers or receiver/transmitters
• Programmable scan groups
• Programmable quick access preset channels
• ATC Communications (TSO)
• Color LCD display with programmable day/night backlighting
• MIL STD 3009 NVIS Green B-compliant
• Customizable GUI
• Flight tunable
• Touch-screen or knob/button command
• Flight glove-compatible
• Industry-best display readability at-a-glance

The RT-7000 is available in many configurations, request a quote below or contact (sales@edmo.com, 800-235-3300) to best suit your application.

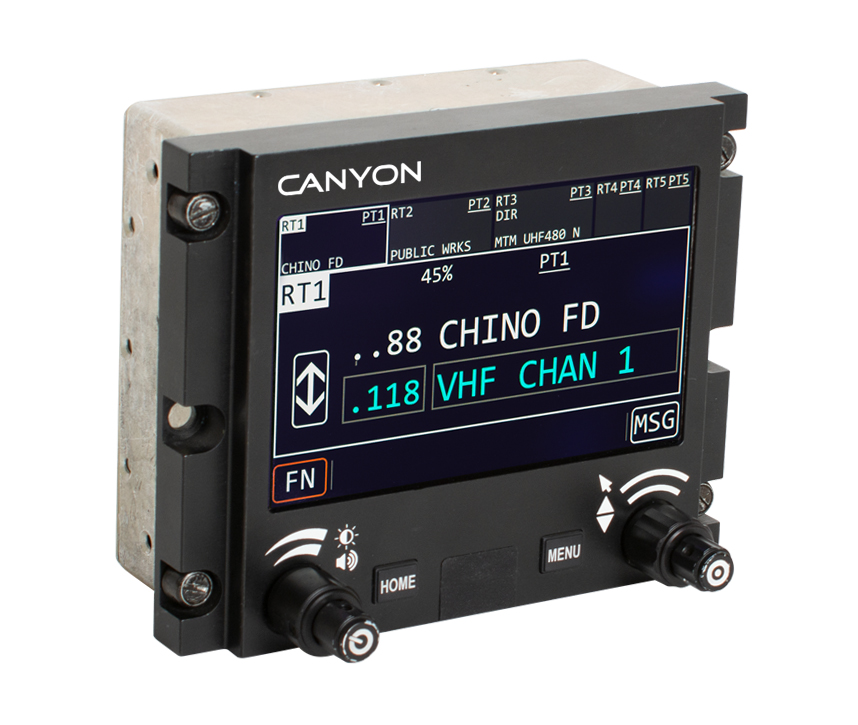

REMOTE CONTROL DISPLAY UNIT (RCDU)

The RT-7000RCDU, a fully-functional display without transceivers, connects to an RT- 7000RMR and replicates the panel-mount radio display in every way. It also can become a remote control display head for the RT-7000PMR, allowing radio control in a second position in the aircraft.

• Delivers instantaneous operation with no delay
• Customizable user interface
• Designed for Emergency Medical Technicians (EMT), rear seat-position Airborne Law Enforcement (ALE) Technical Flight Officers, Search and Rescue (SAR) scanners, or anyone with cabin communication needs.

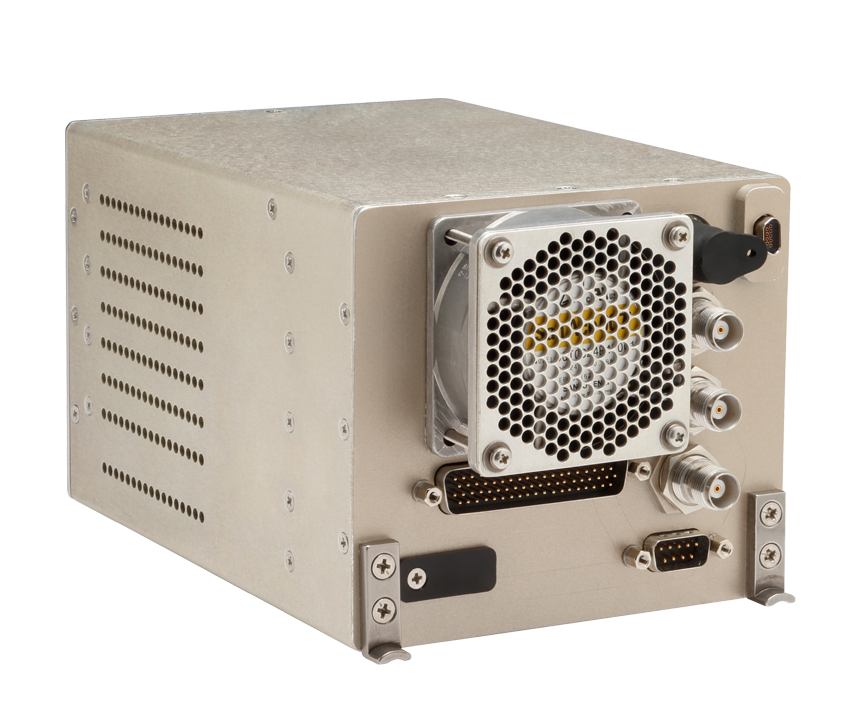

RT-7000 REMOTE MOUNT TACTICAL RADIO

The RT-7000 Remote Mount Tactical Radio (RMR) is an LRU that is designed for rack mounted installations in fixed wing aircraft and helicopters and will satisfy all public safety and para-public voice communications needs. The RT-7000 provides P 25 Phase 1 and 2 digital modulation across the entire range. With the addition of up to two modules, it can also cover VHF, UHF, and 700/800 MHz public safety bands including trunking and Motorola-proprietary radio network features.

As a software-defined device, the RT-7000 can be easily be upgraded to meet evolving requirements for software and hardware without replacing the radio. The Remote-Mount Radio can be controlled by a PMR, RCDU, or MCDU with an interface control document available for selected MCDU's.

RT-7000 Technical Specifications

Voltage Requirements:                      27.5 Vdc +/- 20%

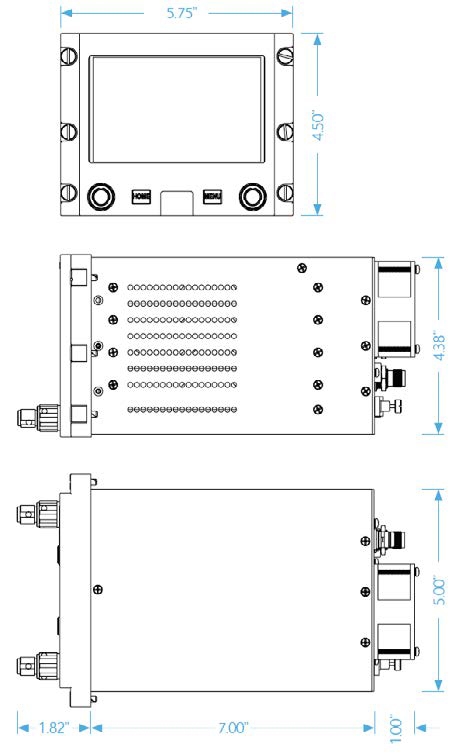

Dimensions/ Weight Dimensions:    See Drawing
                                                                Max weight: 9 lb. (4.08 kg)

Channeling:                                          6.25/8.33/12.5/25 kHz

Wideband Transceiver:                      Frequency Bands
• 30-50 MHz                                         LMR
• 30-88 MHz                                         Military
• 108-118 MHz                                     VOR Voice
• 118-152 MHz                                     ATC and Civil Air Patrol
• 136-174 MHz                                     LMR
• 156-174 MHz                                     Maritime
• 225-400 MHz                                     Military
• 380-520 MHz                                     LMR
• 764-960 MHz                                     LMR

Transmit Power:
• ATC COMS                                         4W min
• AM                                                       4W min
• FM                                                       8W max
• P25 Conventional                             8W max
• Motorola modules
  • VHF                                                   6W
  • UHF                                                   5W
• 700/800 MHz                                    3W

APCO P25                                            All P25 Bands
                                                               - Conventional
                                                                 Common Air
                                                                 Interface (CAI)
                                                              - Phase 1, 2 trunking
                                                              - Analog trunking
                                                                (SmartZone, SmartNet)
                                                              - FM/AM/P25/trunking

Encryption                                           • FIPS 140-2, Level 2/3
                                                               • P25 AES & DES
                                                               • Analog DES, DES-XL,DVP
                                                               • P25 OTAR
                                                               • Multikey
