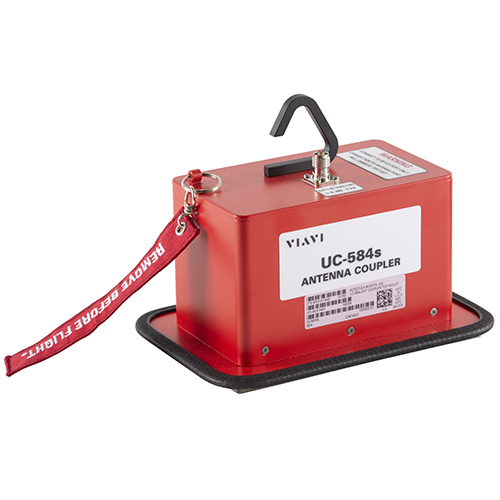

UC-584S | Top Mount Transponder Antenna Coupler

UC-584S | Top Mount Transponder Antenna Coupler

VIAVI

Call For Pricing
In stock
EDMO # UC-584S
MFR Part # 142094
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The UC-584 Series Transponder Antenna Couplers are designed to solve the problem of reliable FAR Part 43 Appendix 'F' ERP (Effective Radiated Power) and transponder MTL (Minimum Trigger Level) testing, in the high multi-path ramp and hangar environments. The innovative design of these couplers include an integral positioning slot ensuring a high level of measurement repeatability is achieved, saving test time.

Features

  • Reliable FAR Part 43 Appendix ‘F’ ERP and MTL testing in high multi-path environments
  • Provides >20 dB of antenna isolation for Mode S transponder altitude and diversity tests
  • Eliminates false intruders and interference with ATC
  • Rugged design for ramp use
  • Fits most ‘Shark Fin’ L-Band antennas
  • Quick action antenna grip/release action

Also Purchased

Specifications

  • Weight:
    2 lb (0.9 kg)
  • Height:
    5.25 in (13.3 cm) (max. antenna height is 2.7 in)
  • Width:
    5.75 in (14.6 cm)
  • Depth:
    8.25 in (20.9 cm)

Related Products

Product Codes

  • Mfr Part No
    142094
