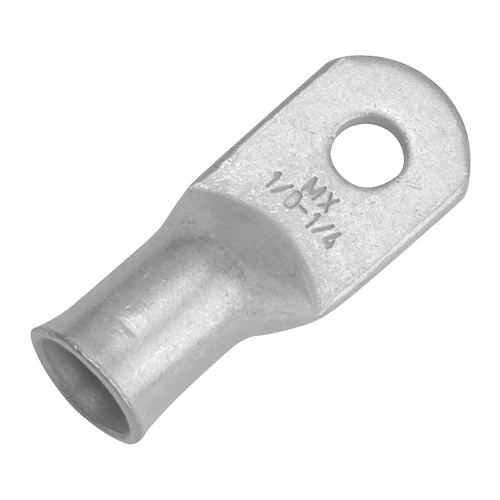

Tinned Closed End Lug | 1/0 AWG, 1/4", 100pc

PACER

Call For Pricing

Available to order

EDMO # TAE1014100

MFR Part # TAE1/0-14R-100

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Creating a strong connection is essential to every electrical system. By using closed end lugs you get not only durability but longevity as well. Pacer's closed end lugs are tin plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire making sure the insulation butts up to the edge of the lug. Now, crimp the lug using the correct tool and you're done. Add epoxy lined heat shrink for added durability. Pacer's closed end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include; #10, 1/4", 5/16", 3/8" and 1/2".

This tinned closed end lug (EDMO# TAE1014100) accepts 1/0 AWG wire, 1/4" studs, and comes a package of 100pc.

Features

Tin Plated
No exposed seams
Rated for 600V
Made from seamless tubes of 99.9% copper for higher conductivity
Designed for stranded copper wires
Larger pad area for better contact
Cable size and stud hole stamped on pad
Can be crimped or soldered
Highly controlled flare to allow easy cable insertion
Tight barrel to pad transition provides longer usable barrel length

Specifications

Dimensions (L x W x H):

1.844 x 0.734 x 0.406 in
Wire Size:

1/0 AWG
Stud Size:

1/4 in
Compliances:

E.T.P. (Electrolytic Tough Pitch) CDA-110, ASTM-B-152 copper rated at 100% conductivity, UL & CSA Approved, RoHS Compliant, Exceeds SAE Conductivity STD J163 & J1811
