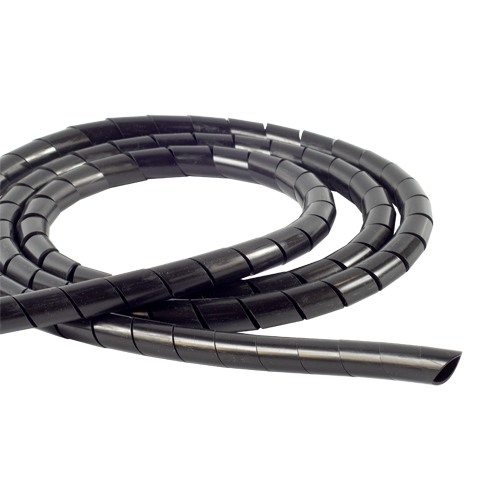

ProTECT® SWP Polyethylene Spiral Wrap | Black, 3/4 Inch Diameter

Product Description

ProTECT® Spiral Wrap tubing provides a solid grip with its torsional cut and rigid profile. It retains its strength under repeated flexing and bending and follows wire paths easily, resulting in tidy, free-running cable bundles. Spiral wrap is also easy to remove and re-apply when troubleshooting is necessary. SWP Polyethylene Spiral Wrap offers excellent versatility at a lower cost.


This Polyethylene Spiral Wrap (EDMO# SWP-3/4BK) has a black color and a 3/4 inch diameter. Sold in 100 ft lengths and is priced per foot.

Specifications

• Specification
  Nominal outside diameter: 0.75 in (19.05 mm)
• Nominal Wall Thickness:
  0.065 in (1.65 mm)
• Nominal Pitch:
  0.875 in (22.23 mm)
• Maximum Bundle Size:
  6.0 in (152.4 mm)
• Colors:
  natural and black

Product Codes

• Mfr Part No
  SWP-3/4BK
• MIL SPEC
  A-A-59602, TY 1
• ECCN
  EAR99
• MIL SPEC
  A-A-59602, TY 1
• SCHEDULE B CODE
  3901.20.0000

Documentation

• ProTECT® spiral wrap datasheet
