JH033 Mic Jack | Mil-Spec, ROHS Compliant

Product Description

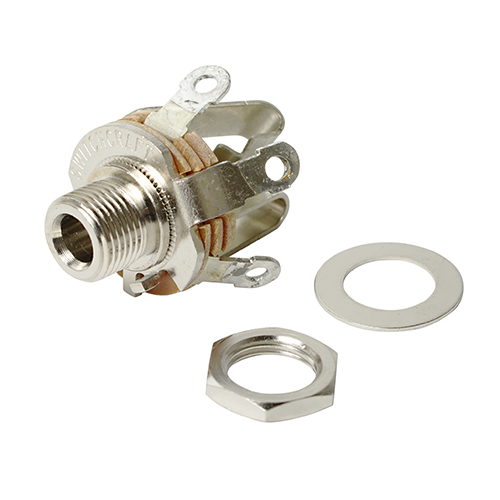

SWC C12BX is a 1/4-inch, MIL-SPEC Open frame audio jack. This jack has 3-conductors and a 0.210-inch diameter.

Specifications

• MECHANICAL:
• Life:
  20,000 insertions/withdrawals (minimum)
• Mechanical Shock:
  Per MIL-STD 202, method 213, Test Condition H (75g)
• Vibration:
  Per MIL-STD-202, method 213, (10-55 Hz)
• ELECTRICAL:
• Contact Resistance:
  0.010Ω, maximum (initial)
• Insulation Resistance:
  10,000 MΩ, minimum (initial)
• Dielectric Voltage:
  500V, 60Hz (rms) AC
• Contact Rating:
  1 amp, 25 VDC
• ENVIRONMENTAL
  :
• Temperature:
  -55°C to 85°C (non-operating) -40°C to 65°C (operating)
• Thermo Shock:
  Per MIL-STD 202, method 107
• Humidity:
  0% to 95% (operating and non-operating)
• Salt Spray:
  Per MIL-STD 202, method 101 (48 hours)
• Moisture Resistance:
  Per MIL-STD 202, method 106 (240 hours)
• MATERIAL:
• Mounting Bushing:
  Nickel-plated, copper alloy
• Insulation:
  Rigid plastic
• Springs:
  Special copper alloy, Integral contacts are standard in the isolated switching circuits, fine silver contacts in C12A switching circuit
• Sleeve Terminal:
  Copper alloy

Product Codes

• Mfr Part No
  C12BX
• ECCN
  EAR99
• ROHS
  YES
• SCHEDULE B CODE
  8536.69.4030

Documentation

• Technical Drawing
