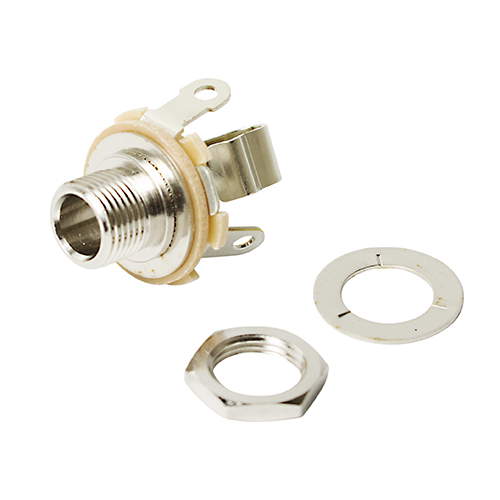

JJ034 HEADPHONE JACK/MONO/ 1/4 inside diameter, includes metal washer and nut.

Product Description

Switchcraft 2-conductor, 1/4-inch open frame jacks mate with standard commercial phone plugs and available with 1/4-inch inside diameter bushings.

This variant (EDMO# SWC 11) has 2-conductor mono jack connectors, an open circuit design, and includes a nut and washer.

Specifications

• Plug Diameter:
  .210 – .250 in
• Insertion Force:
  7 lb
• Withdrawal Force:
  1 lb
• Contact Resistance:
  0.030Ω, maximum
• Insolation Resistance:
  10,000 MΩ
• Dielectric withstanding Voltage:
  500V, 60 Hz (rms) AC
• Contact Rating:
  1A, 25 VDC

Product Codes

• Mfr Part No
  11
• ECCN
  EAR99
• SCHEDULE B CODE
  8536.69.4030

Documentation

• SWC 11 Datasheet
