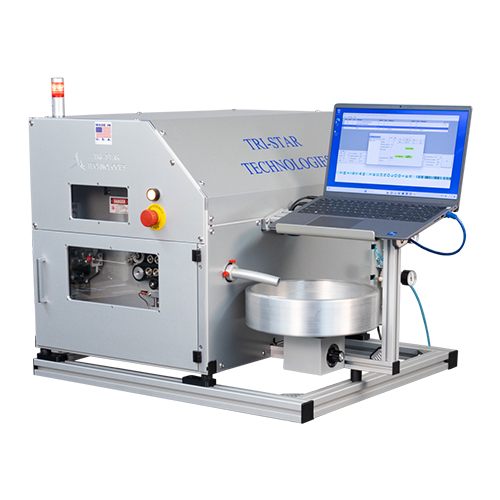

Tabletop Laser Wire Marking System | Mod 100

TRI-STAR

Call For Pricing

Available to order

EDMO # M-100L-100

MFR Part # M-100L-FG-TT-A Mod 100

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The M-100L is a fully automatic, turnkey tabletop laser wire marking system that utilizes a UV solid state laser with an integrated high speed scanner. User friendly software allows unlimited font selection (any TrueType font for any language) as well as full graphics capabilities (pictures, logos, barcodes, etc.). The M-100L-FG-TT-A supports both vertical and horizontal text orientation, programmable message spacing, 3 separate zones of print with variable separation spaces, and source and destination coding on wire ends.

This M-100L (EDMO# M-100L-100) comes with the Mod 100 option.

Features

Easy (13 sec) loading/unloading
Dual stepping motor pulling for accurate wire marking and precise length cutting of round wires and twisted cables
Pneumatic wire cutter
Powered wire coil pan
Single coil wire pre-feed
Integrated laptop computer
Microsoft Windows™ control application
Shop air is required

Specifications

Weight:

75 lbs
Dimensions:

30 x 20 x 23 in
Wire Throughput:

Up to 40 ft/min depending on font size
Wire Gauges:

From 26 to 4 (.75mm to 10mm)
Wire and Cable Jacket Materials:

PTFE, TFE, PEF, ETEF, XL-ETFE, etc.
Electrical Power:

120/220 VAC 1 phase, 4 A 50/60 Hz
Ambient Temperature:

10°C to 40°C
Relative Humidity:

20% to 80%
Laser Markable Wire Types:

BMS 13-48, BMS 13-60, Raychem spec 55, AS22759/16-19, 32-46, 80-92, etc.
Compliance:

Meets MIL-W-5088L, AS-5088-L, and SAE ARP5607 (Legibility of Print); Qualified per the BAC5152 spec
