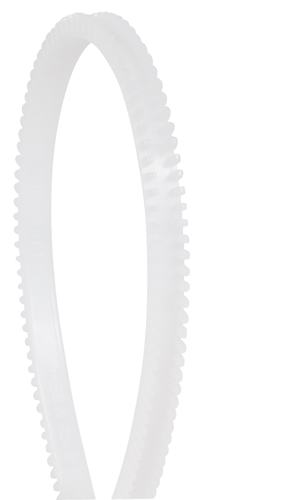

MIL-SPEC Serrated Nylon Gromstrip | 0.015 – 0.052 inch Panel Thickness

Product Description

Gromstrip is a continuous length, extruded U-channel grommet that is used as a protective covering over sharp edges for added protection of wire and cable bundles. Gromstrip is easy to install into any hole, regardless of configuration — simply cut to the desired length and press into place. Minimal panel space is required for Gromstrip to snugly grip the surface and will protect any wires passing through against fraying, cutting, or abrasion.

This Nylon MIL-SPEC 21266 gromstrip (EDMO# GSNCM-1)  and fits panels from 0.015 – 0.052 inch thick, and made of nylon Gromstrip used where abrasion-resistant material is desired.

Specifications

• Overall Width (dimension A):
  0.150 in (3.81 mm)
• Inside Width (dimension b):
  0.056 in (1.42 mm)
• Cushion (dimension C):
  0.055 in (1.40 mm)
• Depth (dimension D):
  0.10 in (2.54 mm)
• Panel Thickness:
  0.015 – 0.052 in (0.38 – 1.32 in)

Product Codes

• Mfr Part No
  GSNCM-1 NATURAL
• MIL SPEC
  MS21266
• ECCN
  EAR99
• MIL SPEC
  MS21266
• SCHEDULE B CODE
  3917.29.0090
