KQ2 One-Touch Female Connector Fitting | 1/4in, 1/8in NPT Connection Thread

Product Description

KQ2 one-touch, metric and inch size fittings are available in a wide variety of sizes, body styles and thread types. The use of a special profile seal allows the KQ2 to be used for a wide range of pressures from a low vacuum up to a pressure of 1MPa.  The KQ2 release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing.

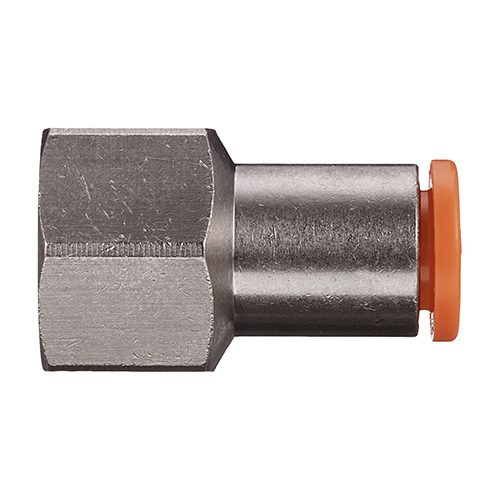

This KQ2 female connector fitting (EDMO# F07-34N) is designed to fit 1/4-inch tubing and has a 1/8-inch NPT connection thread with a electroless nickel-plated brass surface.

Specifications

• Fitting Type:
  Female connector Application Tubing: 1/4" O.D. Port Size/Application Tubing: 1/8" NPT thread

Product Codes

• Mfr Part No
  KQ2F07-34N
• SCHEDULE B CODE
  3917.29.0090
