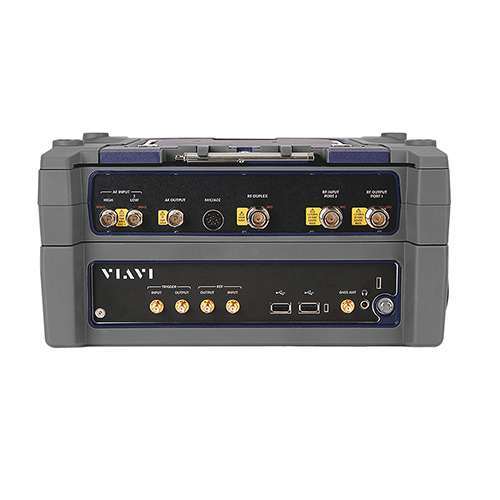

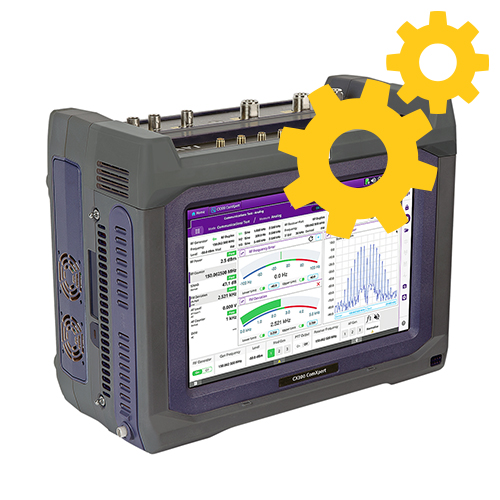

CX300 ComXpert Communications Service Monitor Test Set

Product Description

The CX300 ComXpert Communications Service Monitor is a comprehensive communications service monitor solution for testing everything from portable radios, complex infrastructure, to broadband networks. This portable radio test set offers technicians an easy-to-use solution, in a portable form factor with a large colorful touchscreen interface. This unit preforms individual and overall pass/fail flags for simplified go/no go testing, as well as, optional automated test and alignment applications for a many portable radios. StrataSync cloud-based solutions offer users a simple method of storing and accessing test results from anywhere in the world.

Specifications

• Weight:
  15 lb (6.8 kg)
• Display Size:
  10 in (25.4 cm)
• Temperature:
  0°C to 50°C (operating) -40°C to 71°C (non-operating)
• Relative Humidity:
  95% (non-condensing)
• Altitude:
  4,600 m
• Battery Type:
  14.4V, 6.8 Ah Lithium-ion
• Battery Operation:
  2.3 hr, typical with 2 batteries
• Battery Charging Limits:
  32°F to 113°F (0°C to 45°C) ≤ 85% relative humidity
• Vibration:
  MIL-PRF-28800F Class 3
• Shock:
  MIL-PRF-28800F Class 3
• Bench Handling:
  MIL-PRF-28800F Class 3
• Transit Drop:
  MIL-PRF=2800F Class 3
• EMC:
  IEC/EN 61326-1:2006, CISPR112009 +A1.2010
• Safety:
  EN 61010-1, 3rd edition

Product Codes

• Mfr Part No
  CX300
• SCHEDULE B CODE
  9030.40.0000
