AVX-10K Flight Line Test Set | COMM/NAV/SVLC Package

VIAVI

Call For Pricing
In stock
EDMO # AVX10K-CNS
MFR Part # 22154861
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

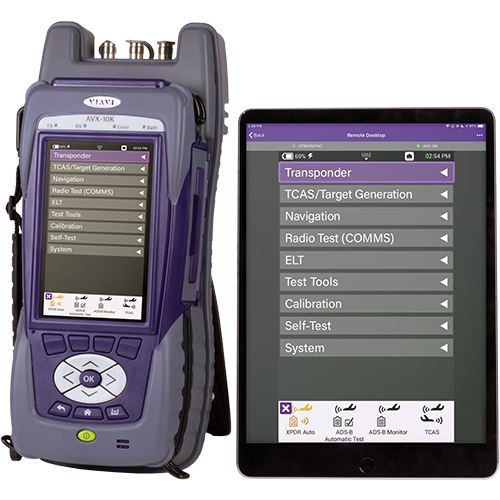

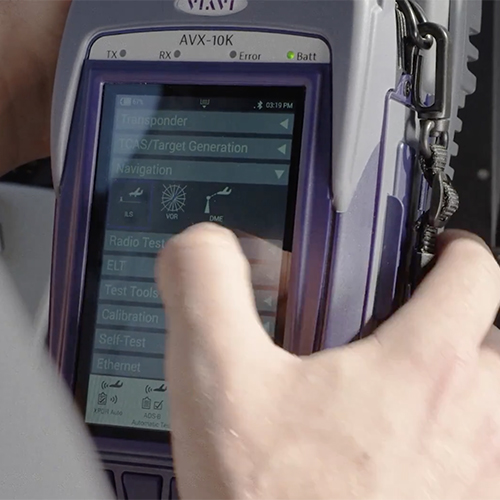

The AVX-10K is a comprehensive flight line test solution providing today’s Avionics Technician with an easy to use instrument for many maintenance needs. From a quick airborne system auto-test to an in-depth troubleshooting tool, testing can conveniently be done around the aircraft or in the cockpit using your mobile device. Easy set-up, quick testing and reporting transferable via USB, Ethernet and wireless all done from an easy user interface, or the VIAVI Solutions Mobile Tech App on your mobile device.

Version (EDMO# AVX10K-CNS) includes the AVX-10K Base Unit, AC Power Adapter, Hand Strap, Operations and Quick Start Manuals, Hard Transit Carrying Case, Adapter Kit Short/Load, VOR/ILS Antenna, Marker Beacon Antenna, 6' Coax Cable, RF Flat Panel Antenna with 1' Cable, UC-584 & UC-584S coupler with two 25' cables, Software Options: Transponder Modes (A,C,S), ADS-B in/out/GICB/Target Gen/FIS-B, DME, Navigation (ILS/MB/VOR), Radio Test AM/FM (Comms).

Features

  • Configurable test capability
  • Harmonized test specifications
  • Software defined applications
  • Remote operation
  • Target aircraft identification
  • Guided Test
  • Android™ and iOS® compatible (iPad not included)
  • Built-in GPS receiver
  • Compliant with global regulatory requirements
  • Allows for future applications
  • Convenient testing from the cockpit with your remote device
  • Selectable UUT via tail number
  • Configurable testing
  • Recall saved test sequences for future use
  • Provides accurate positional data for ADS-B testing
  • Compatible with StrataSync™ Cloud-Enabled Test-Data Management

Also Purchased

Specifications

  • Weight:
    6.5 lb
  • Dimensions:
    5.3 x 3.75 x 12 in.
  • Power:
    100 - 250 VAC, 1.5 A max, 47-63hz
  • Battery:
    Up to 8 hours of operation
  • Specification
    Operating Temperature: -20° to 55°C (-4° to 131°F)

Related Products

Product Codes

  • Mfr Part No
    22154861
  • ECCN
    7B994
  • SCHEDULE B CODE
    9030400000
  • SIN
    334515
