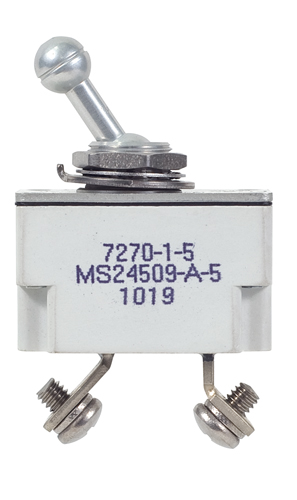

7270-1 Series Circuit Breaker | 5 Amp Rating, Toggle Actuator

Select an option

KLIXON

Call For Pricing

In stock

EDMO # 7270-1-5

MFR Part # 7270-1-5

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Klixon® 7270 series circuit breakers are designed to utilize less space behind the panel while protecting wire and cable in aircraft and ground support equipment on 120 VAC, 400 Hz or 30 VDC systems. Inherently resistant to shock and vibration, the disc element is capable of calibration within close tolerances throughout the service life of the breaker. The 7270-1 series circuit breaker feature a single pole, toggle actuator.

Includes hardware.

Features

This 7270-1 series circuit breaker (EDMO# 7270-1-5) is rated for 5 amps.
Toggle actuator
Trip-free operation
Snap-acting thermal element
Small size
Light weight
MIL-C-5809 qualified
Current ratings (3 to 35 amps)
High interrupting capacity

Also Purchased

Specifications

Weight: 39 grams maximum
Current Rating: 5 amps
Vibrations: 10G minimum, 50–500 Hz
Mechanical shock: 30G
Acceleration: 10G
Endurance: 5,000 cycles: 120 VAC. 400 Hz, inductive 5,000 cycles: 120 VAC 400 Hz, resistive 5,000 cycles: 30 VDC, inductive 2,500 cycles: 30 VDC, resistive 5,000 cycles: Mechanical, no load
Mounting : Screw terminals and neck mounting
