Fuel Flow Transducer | 7-160 GPH, Hall Effect, Straight Pick-up

Product Description

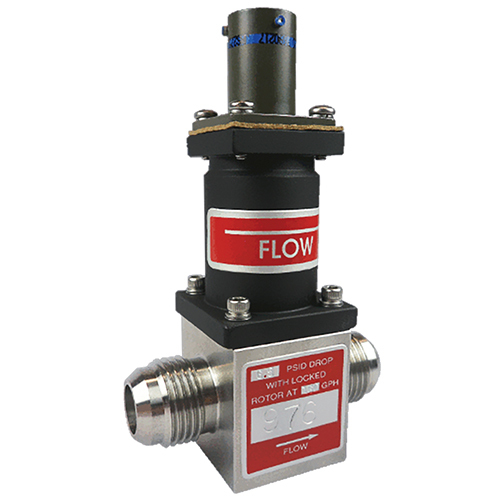

This fuel flow transducer (EDMO# 660534HS) mounts to the engine fuel line and produces electrical signals that represent the fuel flow. The transducer body has hydraulic fittings that connect directly to the engines fuel line, and a small turbine wheel mounted inside with two precision ball bearings driven by the flowing fuel which incorporate a small magnet that is picked-up by a hall-effect sensor. Transducers based on hall effect technology can operate over a broader range of flow rates and in high temperature environments. This transducer also includes an integrated RTD temperature sensor.

Specifications

• In/Out Fitting:
  3/4-16UNF-3A 37° Flare (SAE5309-8 or equivalent)
• Maximum Line Pressure:
  2000 PSIG
• Mounting Screws:
  10-32 x 0.5 in (qty 4)
• Mounting Hole Spacing:
  0.80 in square pattern, 0.187 diameter
• Mounting Position:
  All
• Weight:
  11 oz
• Transducer Supply Voltage:
  4.0 to 29 VDC, regulated power
• Supply Current:
  20 mA, maximum
• Protection:
  Not internally fused
• Connector:
  MS27505T9B35P on transducer
• Connector Mate:
  MS27467T9B35S with backshell M85049/49-2S8W or equivalent
• Output Type:
  Open/GND
• Open Circuit Voltage:
  24 VDC, maximum
• External Pull-up Resistor:
  Sized to limit current to no more than 15 mA
• Flow Rate:
  7 – 160 GPH
• K-Factor:
  9,000 – 10,000 Pulses per Gallon (PPG) at 70 GPH
• Output Type:
  Pulse
• Pressure Drop at 160 GPH:
  Rotor free = 3.0 PSI Rotor locked = 6.5 PSI
• Sensor Type:
  Platinum Resistance Temperature Detector (RTD)
• Specification
  Temperature: -55°C to 150°C
• Sensor Output:
  1kΩ, typical at 0°C
• Scaling:
  3.8Ω/°C, nominal
• Accuracy to Fuel Temperature:
  ±5°C (at steady state)

Product Codes

• Mfr Part No
  660534HS-00
