MS35206-246 Pan Head Machine Screw | 8-32 Thread, 5/8-inch Length, 0.322-inch Phillips Head

MS35206-246 Pan Head Machine Screw | 8-32 Thread, 5/8-inch Length, 0.322-inch Phillips Head

BILD INDUSTRIES

Call For Pricing
In stock
EDMO # 35206246
MFR Part # MS35206-246
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

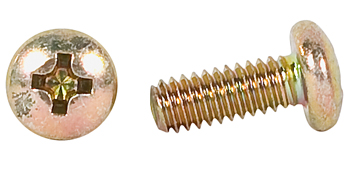

This MS35206 series pan head machine screw (EDMO# 35206246) has 8-32 threads, a 0.322-inch Phillips head, and is 5/8-inch in length. It is also made of cadmium plated steel.

Features

  • MS35206 series pan head machine screw
  • 60,000 psi minimum tensile strength
  • Cadmium plated (QQ-P- 416 Type 2 Class 3)
  • Carbon steel (Federal Standard #66)

Also Purchased

Specifications

  • Thread Class:
    2a
  • Thread Direction:
    Right-hand
  • Thread Length:
    0.625 in
  • Fastener Length:
    0.625 in
  • Head Style:
    Pan Head
  • Head Diameter:
    0.306 – 0.322 in
  • Internal Drive Style:
    Cross recess type 1
  • Nominal Thread Diameter:
    0.164 in
  • Thread Quantity Per Inch:
    32
  • Minimum Tensile Strength:
    60000 lb/sq. in
  • Screw Material:
    Steel, Cadmium Plated
  • Thread Series Designator:
    UNC

Related Products

Product Codes

  • Mfr Part No
    MS35206-246
  • MIL SPEC
    MS35206-246
  • ECCN
    EAR99
  • MIL SPEC
    MS35206-246
  • SCHEDULE B CODE
    7408.29.0000
