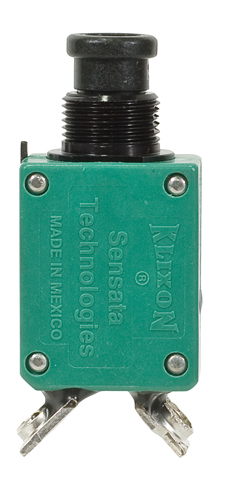

2TC2 Series Circuit Breaker | 2 Amp Rating

Select an option

KLIXON

Call For Pricing

In stock

EDMO # 2TC2-2

MFR Part # 2TC2-2

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 2TC2 series single-phase circuit breakers provide reliable state-of-the-art circuit protection for aerospace power systems. The compact and lightweight design makes these circuit breakers well suited for aircraft avionics and electronic systems. The 2TC series ratings is coordinated so any rating will trip before another rating twice its capacity in the event of a fault. Ambient temperature compensation allows the 2TC circuit breakers to operate where temperatures exceeds the 160°F maximum of non–ambient compensated thermal circuit breakers and may also operate in temperatures as high as 150°F without derating the circuit breaker while eliminating the need for added cooling.

Includes hardware.

Features

This 2TC2 circuit breaker (EDMO# 2TC2-2) is rated for 2 amps.
Compact and lightweight
Trip–free design
Current ratings 1 to 25 amps
High vibration resistance
High interrupting capacity
Coordinated ratings
AS58091 qualified (Also: Military Approvals, FAA PMA)
Typical end use: Aircraft power distribution systems

Also Purchased

Specifications

Weight:

25 g, max.
Dimensions:

1.343 x 0.781 x 0.593 in
Specification

Current Rating: 2 Amps
Vibration:

10G, minimum 50 Hz – 500 Hz
Mechanical Shock:

50G
Acceleration:

10G
Sand and Dust:

12 hr
Corrosion:

salt spray 50 hr
Humidity:

10 days
Explosion Proof:

while interrupting rupture currents
Endurance:

2500 cycles: 120 VAC, 400 Hz (inductive) 5000 cycles: 120 VAC, 400 Hz (resistive) 2500 cycles: 30 VDC (inductive) 5000 cycles: 30 VDC (resistive) 10000 cycles: mechanical (no load)
Operating Altitude:

70,000 ft
