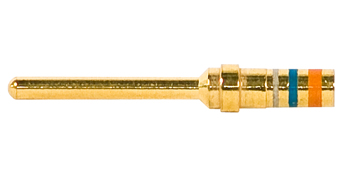

HD 20 Pin Contact | 24 – 20 AWG

Product Description

This size 20 HD contact pin (EDMO# 205089-1) is a crimp, snap-in contact that is constructed with a gold-plated copper alloy. It meets Mil-Specifications M39029/64-369.

Specifications

• Dimensions:
  0.99 – 1.04 in (0.039 – 0.041 mm), post diameter
• Pin Diameter:
  0.41 mm
• Wire Size:
  24 – 20 AWG (0.2 – 0.6 mm2)
• Insulation Diameter:
  1.83 in (0.072 mm), max.
• Temperature:
  -55°F to 125°F (-67°C to 257°C)
• Termination Method:
  Crimp
• Termination Post Length:
  0.325 mm
• Contact Type/Style:
  Pin/ crimp snap-in
• Contact Size:
  20
• Contact Base Material:
  Copper alloy
• Contact Mating Material:
  Gold-plated nickel
• Max. Current Rating:
  7.5 A
• Contact Color Bands:
  Orange, Blue, White
• Contact Mating Area plating Thickness:
  50 µin

Product Codes

• Mfr Part No
  205089-1
• MIL SPEC
  M39029/64-369
• ECCN
  EAR99
• MIL SPEC
  M39029/64-369
• SCHEDULE B CODE
  8536.90.4000
