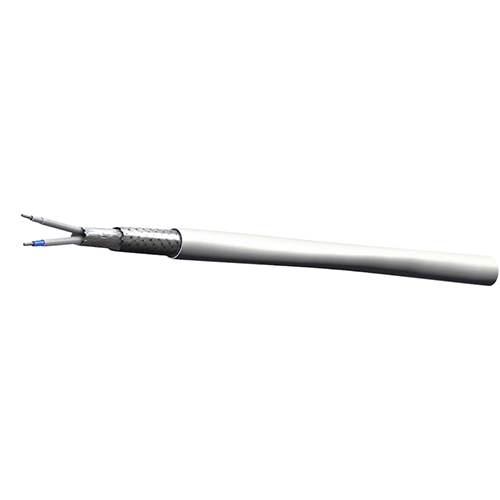

T12243 Datamates® TTP/ASCB Data Bus/CAN Bus cable | 125Ω, 24 AWG
Product Description
T12243 Datamates® TTP/ASCB Data Bus/CAN Bus cable is approved by the Honeywell Commercial Flight System Group. This Databus cable has a single pair of 125Ω conductors that is approved for the ASCB Data bus and Servo CAN Bus for the Primus EPIC/APEX Integrated Avionics system.
This Databus cable is designed to simplify the termination process, pin extraction, and improve the overall quality of the installation. Dual-layer insulation allows this wire to meet specific impedance requirements while providing for easy pin extraction of the contact.
Features
- Provides the primary interface for the Honeywell/Sperry SPZ-8000 DAFCS which includes EFIS, AHRS and DADC
- Can be used with CAN Bus communications for the Honeywell/Sperry Primus II Radio System
- RoHS compliant while passing FAA flammability requirements of FAR Part 23 and 25, Appendix F
- Skydrol resistant
- Laser markable ETFE jacket
- Tin-plated, copper braided shield
- Foil shield
- Foam Fluoropolymer Outer insolation
- Solid PFA inner insolation
- Silver-Plated high strength, copper alloy conductors
Specifications
Weight:
27.5 lb/100 ft (3.7 kg/100 m)
Conductor:
24 AWG stranded SPCA
Shield Coverage:
100% (foil), 90% (braided)
Operating Temperature:
-55°C (150°F)
Outer Diameter:
0.20 in (4.95 mm)
Minimum Bend Radius:
1 in (25.4 mm)
Inner Layer O.D.:
0.044 in (1.118 mm)
Outer Layer O.D.:
0.075 in (1.905 mm)
Impedance:
125Ω
Capacitance:
11 pF/ft (36.1 pF/m)
Velocity of Propagation:
75%
Dielectric Voltage Rating:
1.5 kV RMS
DC Resistance:
27.5Ω/1000 ft (90.2Ω/1000 m)
Attenuation:
10 MHz: 2 dB/100 ft (6.6 dB/100 m), maximum
100 MHz: 6.3 dB/100 ft (20 dB 100 m), maximum
Product Codes

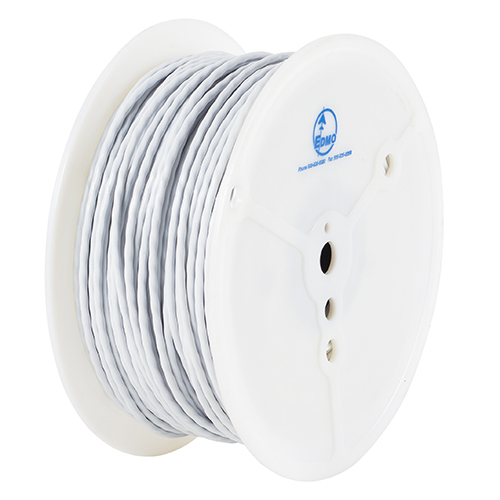

- Mfr Part No:T12243
- EDMO #:T12243
- Brand:PIC WIRE
- Category:Wire, Cable & Accessories
