ProFIT® HIX Heat Shrink Tubing | White, 1 in, 100 ft
Product Description
ProFIT® HIX general purpose polyolefin heat-shrinkable tubing is used for insulating, jacketing, bundling, and identifying wire and cables. HIX tubing is mechanically tough and resistant to abrasion and solvents while providing a longitudinal shrinkage less than 6%.

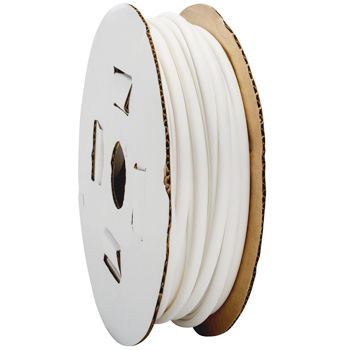

This HIX heat shrink tubing (EDMO# HIXR-1WH) has a 1 inch diameter, colored white, and comes as a 100 foot roll.
Features
No product features currently available.
Specifications
Diameter:
1 in
Length:
100 ft roll
Minimum Expanded I.D.:
1.000 in (25.40 mm)
Maximum Recovered I.D.:
0.500 in (12.70 mm)
Recovered Wall Thickness:
0.035 in (0.89 mm)
Operating Temperature:
-67°F to 275°F (-55°C to 135°C)
Shrink Ratio:
2 to 1
Shrink Temperature:
250°F (121°C)
Color:

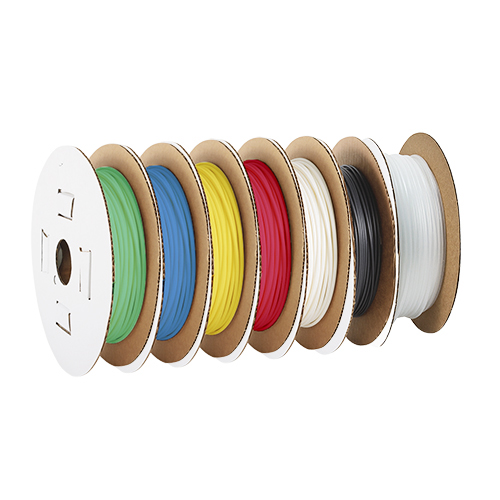

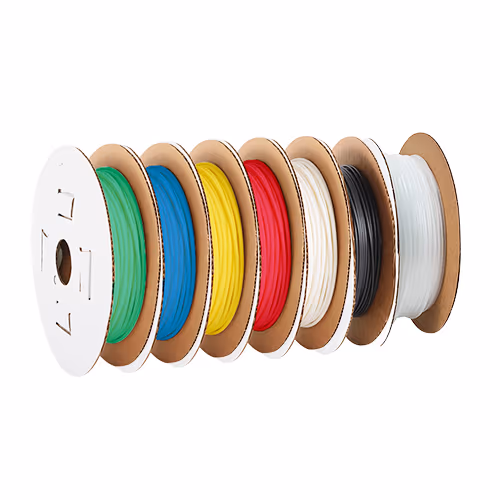

White (other colors available)
Application Specifications:
SAE-AMS-DTL-23053/5, Class 1 and 2
UL File Number:
E52612 (VW-1 except Clear)
Product Codes
- Mfr Part No:HIXR-1WH
- EDMO #:HIXR-1WH
- Brand:ICO RALLY
- Category:Wire, Cable & Accessories
- ECCN:EAR99
- MIL SPEC:M23053/5
- MIL SPEC:M23053/5
- MIL SPEC:M23053/5
- SCHEDULE B CODE:3902.30.0000
