CI-502 VOR/LOC Signal Coupler | 108–118 MHz, 50 Ω, BNC Female Connector

Product Description

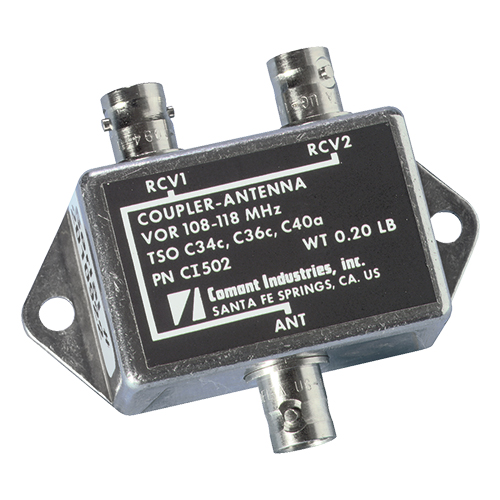

The CI-502 VOR/LOC signal coupler (EDMO# CI-502) is a two-through-hole-mount style coupler with BNC ports. This coupler separates a single VOR/LOC antenna signal into two VOR/LOC signals. It is designed for VOR/LOC only coupling applications and is suitable for internal aircraft mounting.

Specifications

• Weight:
  0.25 lb
• Height:
  0.88 in.
• Frequency:
  108–118 MHz
• VSWR:
  1.5:1
• Isolation:
  20 dB
• Insertion Loss:
  3.5 dB
• Impedance:
  50 Ω
• Construction:
  Die Cast Aluminum
• Finish:
  Aluminum
• Connector:
  BNC Female
• Mounting Location:
  Internal
• FAA TSO:
  C36e, C40e

Product Codes

• Mfr Part No
  CI 502
• ECCN
  7A994
• NSN
  5985-01-498-0502
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C34c,C36c,C40a
