MaxDim Dimmer Control Unit | 12–35V, 12.5A, Ring Terminals

9100-001-B 1

SEATON ENGINEERING

CALL FOR PRICING
In Stock
EDMO#9100-001-B
MFR#9100-001-B

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The MaxDim control unit is the perfect option for controlling lighting and instrument panels in new or existing aircraft. This fully self-contained controller works with incandescent and LED lights, pre-inverter electroluminescent strips, Nulite systems, and more without the need for separate control modules. At less than an ounce the device is very light and produces a negligible amount of heat so that heavy heat sinks are not needed.

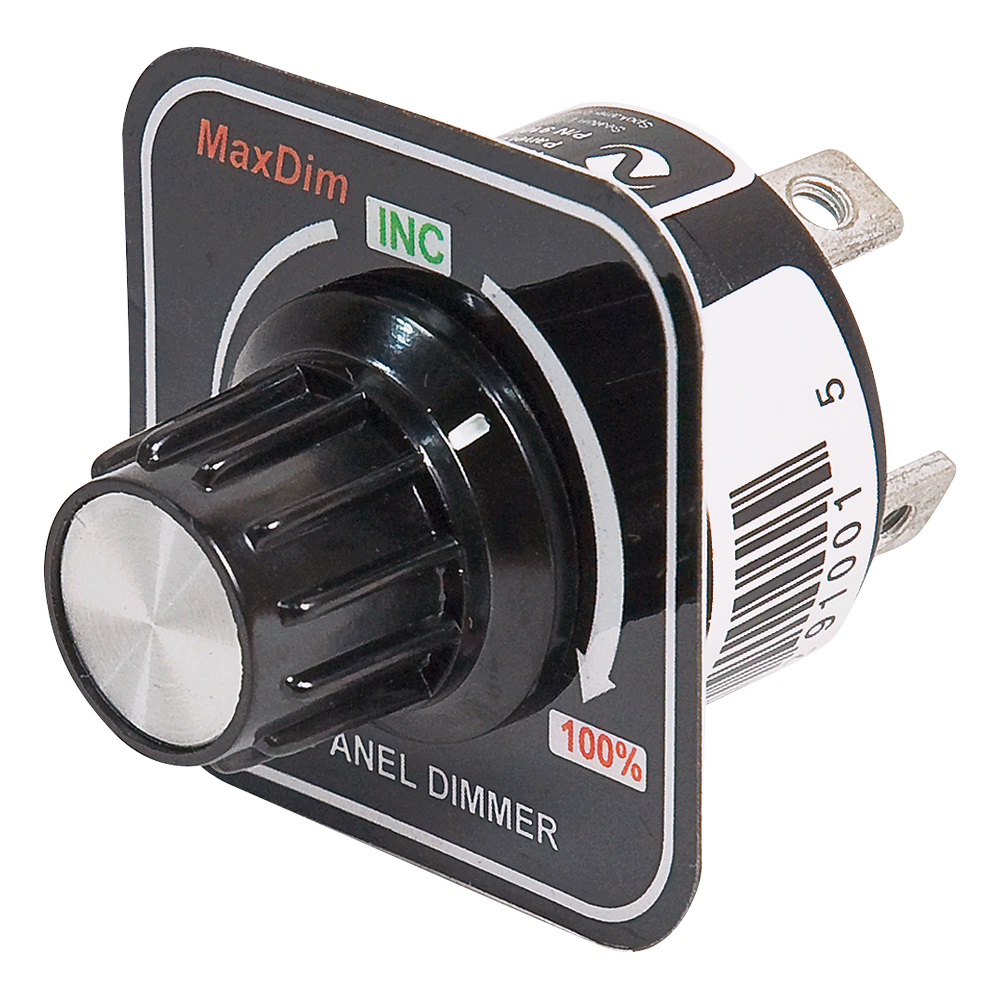

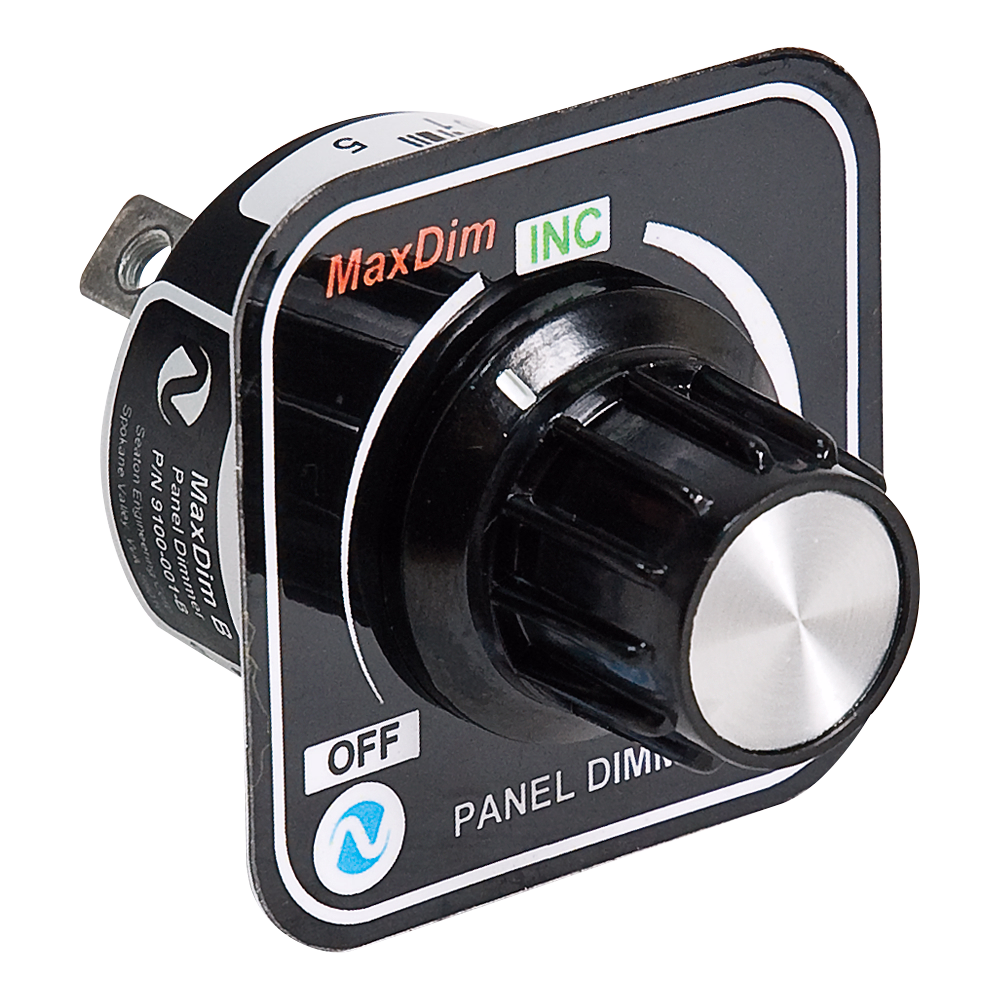

This MaxDim dimmer control unit (EDMO# 9100-001-B) has ring terminals and a 12.5A max current rating.

Features

  • Single channel MaxDim PWM dimmer with ring terminals

  • Controls incandescent, LED, and electroluminescent lighting

  • Works excellent with all post lights, wedge lights, map lights, glare shield lighting, and cabin lights

  • Approved as AMOC for Cessna AD 93-24-15

  • Hundreds of DC lighting control applications in aircraft, marine, rail, trucking, and others

  • STC/PMA approved

  • RTCA/DO-160E Section 21 RFE Qualified

  • Comes with MaxDim unit, installation instructions, spade terminals, placard, installation template, and knob

Specifications

Weight:
1 oz

Dimensions:
Panel label: 1.6 x 1.6 in
Control unit: 1.27 in, diameter

Voltage Range:
12 VDC to 35 VDC

Max Current:
12.5 A

Operating Temperature:
-30°C to 65°C

Internal Temperature Protection:
85°C

Storage Temperature:
-40 to 100°C

Maximum Internal Temperature:
+15°C at 12.5 A

Product Codes

  • Mfr Part No:9100-001-B
  • EDMO #:9100-001-B
  • Brand:SEATON ENGINEERING
  • Category:Aircraft Lighting
  • ECCN:7A994
  • PMA:PQ2574NM
  • SCHEDULE B CODE:8536.90.8085
  • STC:SA01861SE
