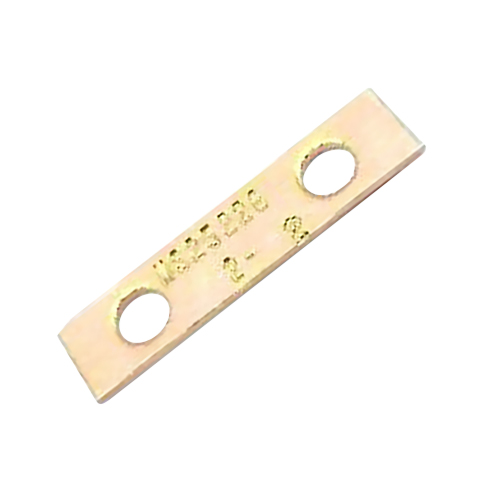

25226-2 Series Bus Bar | 2 Hole, 6-32 Size, 0.594-inch Spacing

Product Description

The 25226-2 series terminal block bus bars are designed to be used with the MS27212 terminal blocks. They consist of parallel plates of conductors bonded together and separated by a thin layer of insulation to provide low inductance, high capacitance, and ease of assembly. Ideal for system integration where high power switching, such as IGBTs, is involved.

This bus bar (EDMO# 25226-2-2) connects to terminal blocks with two, 6-32-sized holes with a 0.594 hole spacing from center to center. It is also made of cadmium-plated copper.

Specifications

• Number of Holes:
  2
• Hole Diameter:
  0.147 in
• Hole Spacing:
  0.594 in, center to center
• Material:
  Cadmium Plated Copper

Product Codes

• Mfr Part No
  MS25226-2-2
• MIL SPEC
  MS25226-2-2
• ECCN
  EAR99
• MIL SPEC
  MS25226-2-2
• SCHEDULE B CODE
  8536.69.4030
