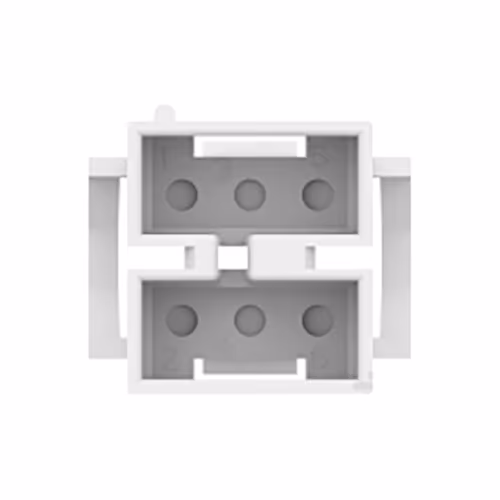

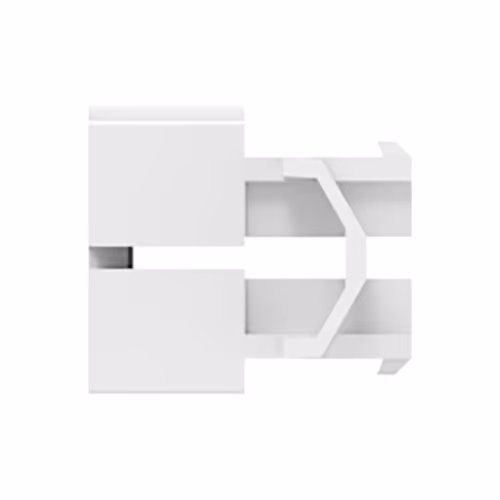

Commericial Mate-N-Lok Motor Mount Pin Housing | 6 Circuits
Product Description
Commercial Mate-N-Lok motor mount connectors allows wire bundles and harnesses to interface with other wire harnesses or panel connections.
This Mate-N-Lok connector (EDMO# 1-480271-0) features 6-pin connections and mates with Mate-N-Lok 1-480270 socket housing.
Features
- Mates with 1-480270 socket housing
- 6-pin matrix style pin housing
- 6-position / 2-row
- Positive lock
Specifications
Dimensions:
0.785 x 0.929 x 0.93 in (9.94 x 23.6 x 23.62 mm)
Number of Contacts:
supports up to 6
Material:
Nylon, natural color
Voltage Rating:
250 V
Style:
Matrix
Housing Type:
Pin housing
Flammability Rating:
UL94V-2
Mate with:
Mate-N-Lok 1-480270
