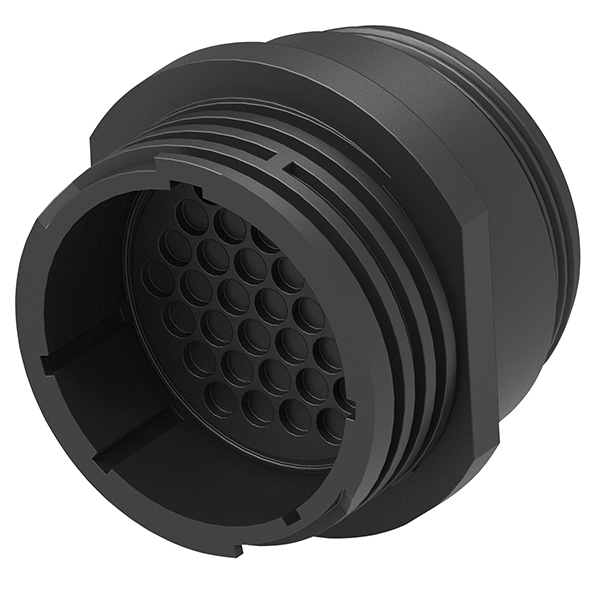

Series 1 CPC Connector Receptacle | Size 23 Shell, 23-Position, Free-Hanging, Thermoplastic

Series 1 CPC Connector Receptacle | Size 23 Shell, 23-Position, Free-Hanging, Thermoplastic

TE CONNECTIVITY

Call For Pricing
A tariff fee of $1.2725 EA may apply.
In stock
EDMO # 206151-2
MFR Part # 206151-2
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Series 1 CPC connectors are constructed with thermoplastic material providing a flammability rating of UL 94 V-0.

This circular connector receptacle (EDMO# 206151-2) features a size 23 shell size, 37 contact positions, and is a free-hanging mounting receptacle. Thermoplastic construction.

Features

  • Free-Hanging mounting style CPC receptacle
  • Series 1 CPC circular connector
  • Uses Type III+, high current power, Type II and subminiature coax contacts

Also Purchased

Specifications

  • Height:
    44.45 mm Diameter: 36.53 mm Connector Type: standard circular connector series 1 Housing Material: thermoplastic (TP) Mating Style: threaded Mounting Angle: straight: Mounting Style: free hanging Number of Positions: 37 position Shell Material: thermoplastic Shell Size: 23 Shell Style: receptacle Thread Size: 1-3/8-18 Flammability Rating: UL 94 V-0

Related Products

Product Codes

  • Mfr Part No
    206151-2
  • CSA
    LR7189
  • ECCN
    EAR99
  • NSN
    5935-01-102-0363
  • SCHEDULE B CODE
    8538.90.8040
  • UL
    E28476
