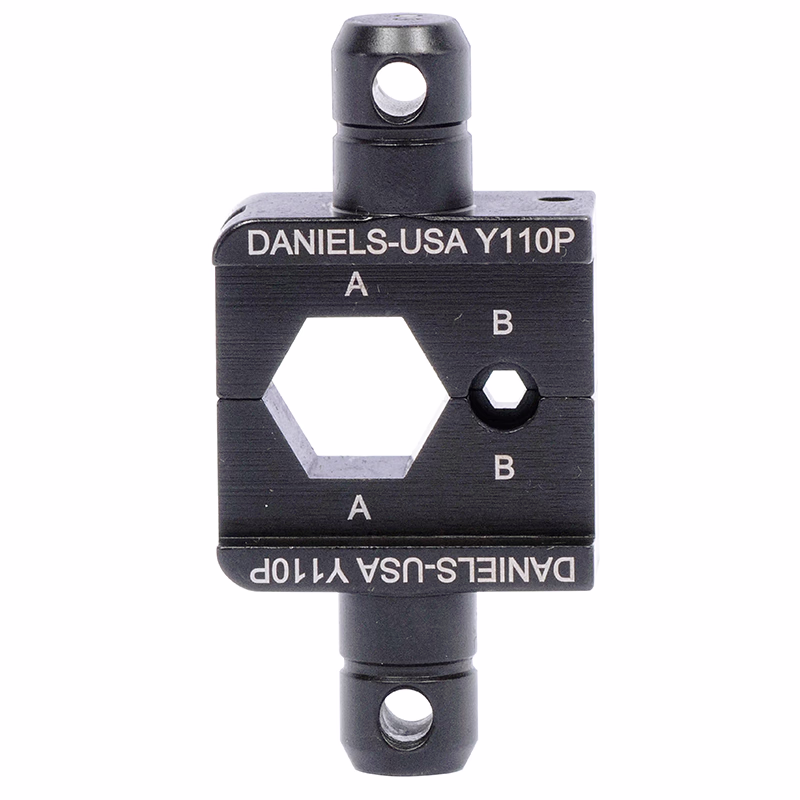

Y110P Y-Die Set for HX4 | 0.429 & 0.100 Hex w/Alignment Pin

DANIELS MFG

CALL FOR PRICING
Special order
EDMO#Y110P
MFR#Y110P

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The DMC HX4 Crimp tool features a system of interchangeable dies which eliminate the need of separate fixed die crimp tools for each and every different application. Many maintenance and manufacturing concerns have standardized on this model, thus eliminating the cost associated with maintainaing and calibrating bulky inventories of single purpose tools.

Features

Die Set:
M22520/5-25

Die Closure Dimensions (inches):
A Cavity (Hex):
0.429

Length:
0.400:

B Cavity (Hex):
0.100

Length:
0.120

Product Codes

  • Mfr Part No:Y110P
  • EDMO #:Y110P
  • Brand:DANIELS MFG
  • Category:Tools & Cases
  • ECCN:EAR99
  • ECCN:EAR99
  • MIL SPEC:M22520/5-25
  • MIL SPEC:M22520/5-25
  • NSN:5120-01-335-8260
  • NSN:5120-01-335-8260
  • SCHEDULE B CODE:8203.20.6060
  • SCHEDULE B CODE:8203.20.6060
