Fixed GPS Signal Attenuator | 20dB Attenuation, DC Passthrough
Product Description
This GPS signal attenuator is a one input and one output device for reducing the signal strength by a fixed amount for optimizing GPS networks for specific applications. It will accept signals from all major GNSS constellations with excellent gain flatness. In the Standard configuration, port J1 will accept DC voltage from a GPS receiver while unregulated voltage is passed through the antenna port to provide power to an active antenna or other connected device.

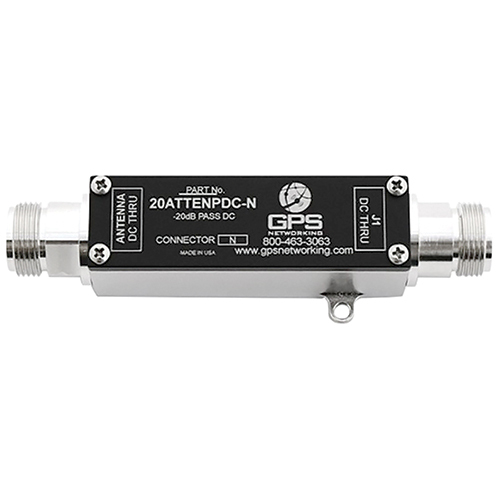

This GPS line attenuator (EDMO# XXATTENPDC) lessens GPS signals by a fixed 20 dB and will pass DC voltage through the device to power upstream devices.
Features
- Attenuates GPS signal by 20 dB
- Compact and lightweight
- Extremely flat group delay: <1 ns variation
- Excellent Flatness: attenuation on L1 & L2 bands < 1.0 dB
- Low SWR: < 2.0:1, max.
Specifications
Weight:
2.84 oz (80.4 g, max.)
Dimensions:
0.90 x 0.75 x 2.5 in (not including connectors)
Operating Temperature:
-57°C to 87°C
Frequency Range:
1.1 GHz — 1.7 GHz
Characteristic Impedance:
50Ω
Acceptable DC Input Voltage:
0 VDC — 35 VDC
Current Handling:
400 mA, max.
Attenuation:
20-1 to 20+1 (20 dB, typical) [EDMO# XXATTENPDC]
Input SWR:
1.7:1, typical (2.0:1, max.)
Output SWR:
1.7:1, typical (2.0:1, max.)
Band Attenuation Flatness:
0.5, typical (1 dB, max.)
Product Codes
- Mfr Part No:XXATTENPDC-
- EDMO #:XXATTENPDC
- Brand:GPS NETWORKING
- Category:GPS Components & Accessories
