WA2000 Electrical Current & Load Tester Accessory | Omni Load Tester
Product Description

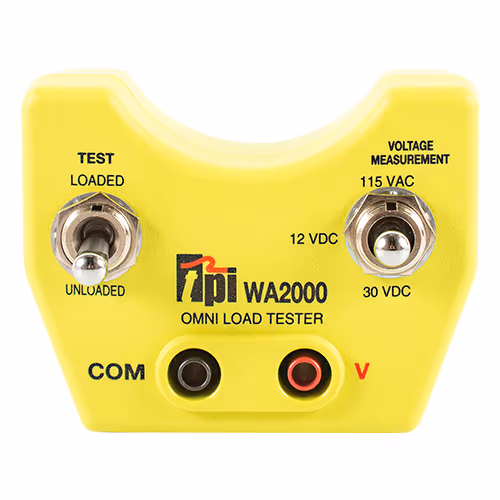

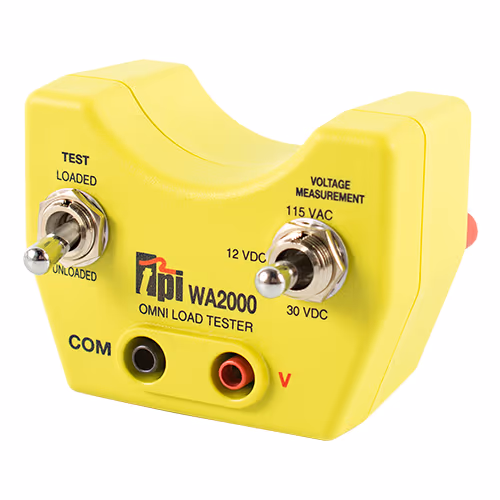

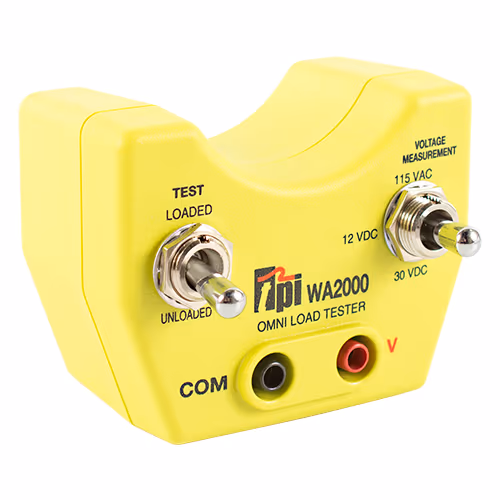

The TPI WA2000 Omni Load Tester (EDMO# WA2000) is an adapter for performing electrical load ratio tests. It connects to the WA2025 or another similar digital multimeter to enable load faults to be found in electrical circuits. The WA2000 Omni Load Tester enables users to quickly and easily test voltage and detect resistances as low as a couple of ohms in order to prevent intermittent operation when subjected to pressure, temperature, and/or vibration.
Features
- Connects to the WA2025 or similar digital multimeter
- Performs electrical load ratio tests
- Enables load faults to be found in electrical circuits
Specifications
Operating Test Voltages:
12 VDC, 30 VDC, 115 VAC
Load Current:
10 mA
Over Voltage Rating:
1000 V (PTC Protected)
Operating Temperature:
32º to 122ºF (0º to 50ºC)
Storage Temperature:
-4º to 140ºF (-20º to 60ºC)
Humidity:
0 to 80% RH
Product Codes
- Mfr Part No:WA2000
- EDMO #:WA2000
- Brand:TEST PRODUCTS INTERNATIONAL (TPI)
- Category:Wire & Cable Testers
