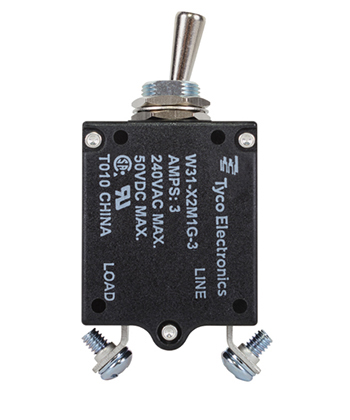

W31 Series Circuit Breaker | 3 Amp Rating, Toggle Actuator
Product Description
The W31 series are single pole, thermal circuit breakers with toggle actuator and series trip function. They are UL 1077 Recognized as Supplementary Protectors. File E69543, and CSA Accepted as Supplementary Protectors (Appliance Component Protectors), File LR15734.
Includes hardware.
Features
The W31-X2M1G-3 circuit breaker (EDMO# W31M-3) is rated for 3 amps.
- 0.5 amp to 50 amp ratings may be used as on/off switch
- Cannot be reset against overload
- Screw termination
- Trip-free operation
- Silver with amp rate marking toggle switch
- Two hex nuts/lockwasher installed mounting hardware
Specifications
Weight:
Less than 2 oz
Mounting:
Panel mount
15/32 in threaded bushing .320 in (8.13mm) long, double “D”, silver color
Terminals:
Two #8-32 screw terminals (90° to each other termination)
Dielectric Strength:
Over 1,500 volts RMS
Maximum Operating Voltages:
50VDC or 240VAC (to 400 Hz)
Current Rating:
3 amp
Voltage Rating AC:
250 VAC
Voltage Rating DC:
50 VDC
Product Codes
- Mfr Part No:3-1393247-7
- EDMO #:W31M-3
- Brand:TE CONNECTIVITY
- Category:Electrical Interconnect
