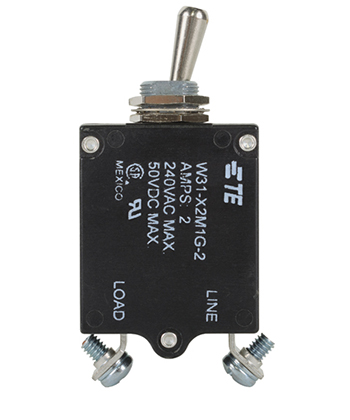

W31 Series Circuit Breaker | 2 Amp Rating, Toggle Actuator

TE CONNECTIVITY

Call For Pricing

In stock

EDMO # W31M-2

MFR Part # 3-1393247-4

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The W31 series are single pole, thermal circuit breakers with toggle actuator and series trip function. They are UL 1077 Recognized as Supplementary Protectors. File E69543, and CSA Accepted as Supplementary Protectors (Appliance Component Protectors), File LR15734.

Includes hardware.

Features

The W31-X2M1G-2 circuit breaker (EDMO# W31M-2) is rated for 2 amps.
0.5 amp to 50 amp ratings may be used as on/off switch
Cannot be reset against overload
Screw termination
Trip-free operation
Silver with amp rate marking toggle switch
Two hex nuts/lockwasher installed mounting hardware

Also Purchased

Specifications

Weight:

Less than 2 oz
Mounting:

Panel mount 15/32 in threaded bushing .320 in (8.13mm) long, double “D”, silver color
Terminals:

Two #8-32 screw terminals (90° to each other termination)
Dielectric Strength:

Over 1,500 volts RMS
Maximum Operating Voltages:

50VDC or 240VAC (to 400 Hz)
Current Rating:

2 amps
Voltage Rating AC:

240 VAC
Voltage Rating DC:

50 VDC
