Joystick Articulating Videoscope | 3.9mm Diameter, 1.5m Length

USA BORESCOPES

CALL FOR PRICING
Out of Stock
EDMO#VSJ-4-1500
MFR#USAVSJ-4-1500

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

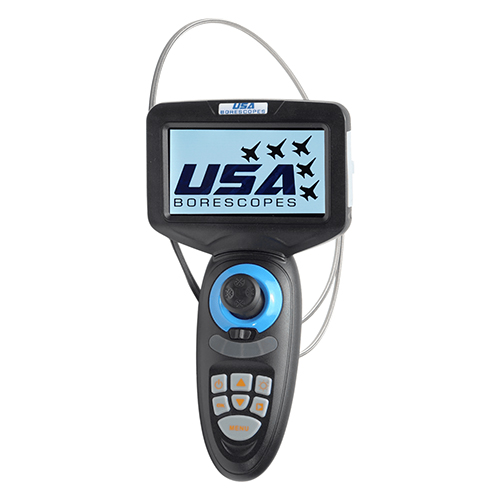

The USAVS J-4-1500 Slim 3.9mm diameter joystick controlled articulating videoscope with responsive cable guided controls. The precision-made bending section of the economy joystick allows for smooth and precision manipulation of the tip of the probe to obtain a full view of the borescope inspection area. The borescope probe is steel braided and flexible. Still photos and videos are captured with just the push of a button. The data is saved on a removable SD card which allows for easy storage and transfer of the borescope inspection data. The monitor is made up of a high brightness color LCD display and ultra-small High Resolution CMOS micro camera. Inspection results will be clearly shown on the 4.5-inch LCD. It has crisp imaging, high reliability and stability which proves valuable in many different industries.

Features

  • Time Date Stamp
  • USB 2.0 port
  • Automatic white balance
  • 7 Languages
  • High Image Quality and Clarity (1280 x 720px)
  • Water and Oil resistant probe
  • 360 degrees (all way) articulation
  • Rechargeable battery pack
  • Adjustable LED lighting

Specifications

Probe Dimensions:
3.9mm Diameter, 1.5m Length

Field of View:
120°

Articulation:
360°

Display Size:
4.5 in

Display Resolution:
1280 x 720px

Bending Section Length:
50 mm (1.96 inch)

Distal Tip Length:
15mm (.59 inch)

Battery:
Li-ion 3500mAH

AC Adapter Input:
110-240VAC

Operating Temperature:
0°C to 60°C

Insertion Probe:
IP 67

Control Station:
IP 52; 4.5”

Product Codes

  • Mfr Part No:USAVSJ-4-1500
  • EDMO #:VSJ-4-1500
  • Brand:USA BORESCOPES
  • Category:Tools & Cases
