Variable Gain Hanger Networked GPS Re-Radiating Kit | BNC Connectors, 110V Source Input, LCD Display
Product Description

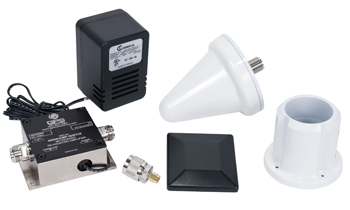

This GPS re-radiating kit is designed for distributing GPS signals inside a hanger or large spaces without obstruction. GPS L1 signals is received by the include roof antenna, amplified, and then re-radiated indoors using the passive antenna. This hanger GPS re-radiating system consists of an active roof-top antenna, a passive re-radiating antenna, and amplifier with external power supply to power the entire system. In the standard network configuration, the amplifier output (J1) is DC blocked while the antenna port provides DC voltage to power the roof antenna.
This hanger GPS re-radiating kit (EDMO# VGLCDHNRRB) features BNC-type connectors, operates from a 110V power source, and a variable gain amplifier with an LCD display.
This product is only to be used for testing GNSS equipment/systems for the purpose of product development or fabrication.
Per the latest FCC guidance, the following use cases are NOT allowed:
- Fire Stations & First Responders
- Aircraft Repair and Maintenance
- Truck Repair and Maintenance
- Any other usages which could be considered "maintenance".
An FCC Experimental Broadcast license is required to operate this device, with the following exceptions:
- Device is operated in a shielded environment, such as an anechoic chamber.
- Device is operated in conjunction with a reradiating hood.
- Device is operated by federal or DoD personnel with the approval of the local spectrum manager.
Features
- High gain amplified roof antenna provides 38 dB gain
- Re-radiating amplifier with external power supply provides 30 dB gain
- Option mounting kit hardware available
- Optional variable gain amplifier with gain from 1 dB to 25 dB
- Optional variable gain amplifier with LCD with gain from 1 dB to 30 dB
Specifications
Roof Antenna:
Weight:
6.6 oz
Dimensions:
3.54 x 6.6 in
Operating Temperature:
-45°C to 85°Cd
Frequency:VGLCDHNRR
1.575 GHz, typical
Gain:
38 dB, typical (30 dB, min.)
Bandwidth:
10 MHz, typical
Filtering:
-60 dB, typical
Noise Figure:
1.8 dB
Output SWR:
1.5:1, max.
Characteristic Impedance:
50Ω
Req. DC Input.:
4.5 VDC — 5.5 VDC (5.0 VDC, typical)
Current Draw:
20 mA, typical (27 mA, max.)
Re-Radiating Antenna
Weight:
1.7 oz (48 g)
Dimensions:
0.67 x 2.6 x 2.6 in
Operating Temperature:
-40°C to 85°C
Frequency:
1.572 MHz — 1.578 MHz (1.575 MHz, typical)
Axial Ratio:
3 dB
Peak Gain:
4 dBic
Bandwidth:
20 MHz, min.
Input SWR:
1.5:1, max.
Characteristic Impedance:
50Ω
Re-Radiating Amplifier:
Weight:
9.6 oz (272 g), max.
Dimensions:
1.3 x 3.25 x 2.5 in, max. (not including connectors)
Operating Temperature:
-57°C to 87°C
Frequency Response:
1.1 GHz — 1.7 GHz
Characteristic Impedance:
50Ω
Req. DC Input V.:
3.3 VDC — 15 VDC
Current Draw:
36 mA, typical (40 mA, max.)
Gain:
29 dB — 31 dB (30 dB, typical)
Input SWR:
2.0:1, max.
Output SWR:
2.0:1, max. (1.8, typical)
Noise Figure:
L1: 2.0 dB
L2: 4.25 dB
Band Gain Flatness:
0.5 dB, typical (1.0 dB, max.)
Group Delay:
L1: 1.5 ns
L2: 2.1 ns
Reverse Isolation:
L1: -55 dB
L2: -60 dB
Input P1dB:
L1: -21.5 dBm
L2: -23 dBm
3rd Order Intercept:
-13 dBm
Source Voltage Option:
110 VAC, Transformer (ITA Type A Wall Mount)
Connector Option:
BNC connector
Product Codes
- Mfr Part No:VGLCDHNRRKIT-BNC/5/110
- EDMO #:VGLCDHNRRB
- Brand:GPS NETWORKING
- Category:GPS Components & Accessories
