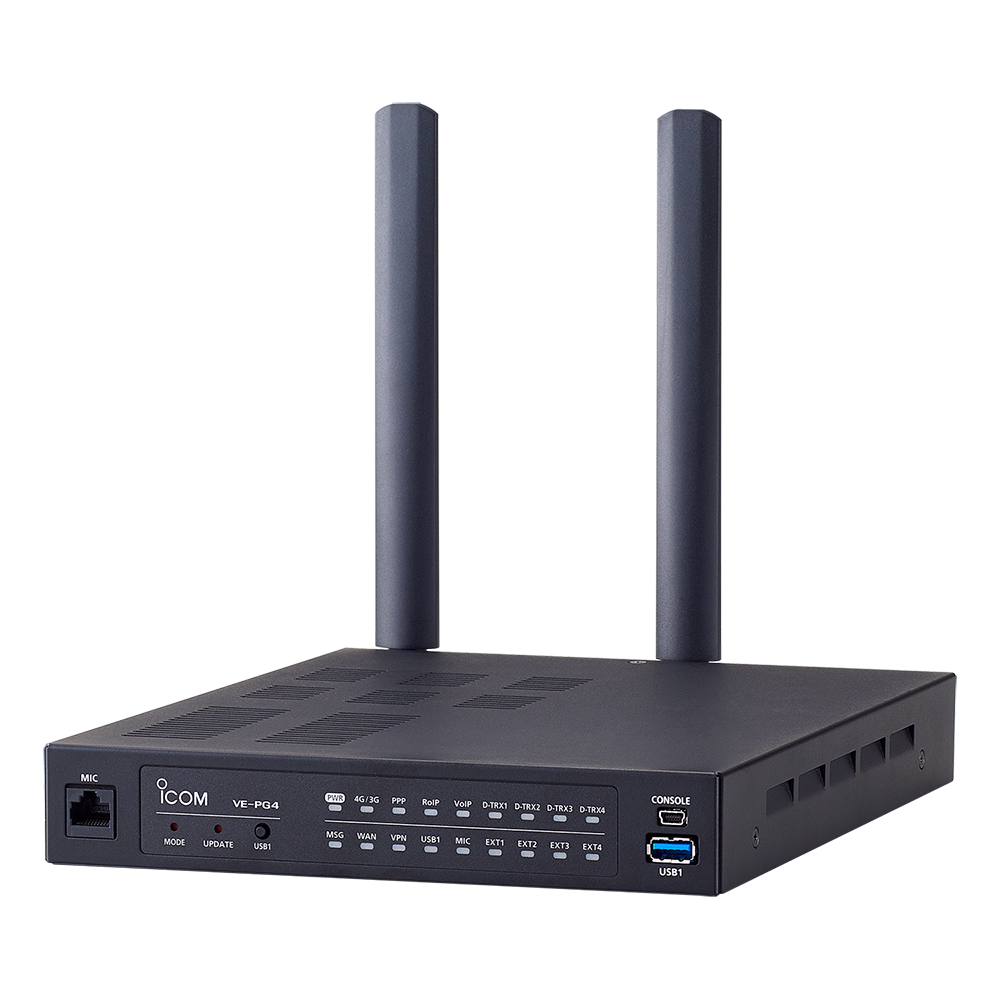

VEPG4 RoIP Gateway

VEPG4_1

ICOM AMERICA

CALL FOR PRICING
Special order
EDMO#VEPG4
MFR#VEPG4

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The VE-PG4 is a versatile RoIP (Radio over IP network) gateway unit, which seamlessly interconnects LMR radios, LTE radios, IP communication terminals, IP phone systems and external devices. In addition to the IP Network (LAN/WAN), the built-in LTE module provides virtually nationwide communication coverage.

Features

Supplied Accessories:

  • Antennas

  • BC-236, AC adapter

  • Antenna bases with 1.5m (4.9 ft) cable

  • Quick connectors

Features:

  • Bridge radio groups for seamless communication across different systems

  • Combine LTE radios with IDAS™ digital radio groups for extended coverage

  • Flexible Wi-Fi radio communication with IDAS™/LTE radio groups

  • IDAS™ digital, Wi-Fi and LTE radios make calls with telephone network

  • Connecting multiple gateways over an LTE network for flexible expansion

  • Integration with public address system for broad announcement and alert

  • RoIP, SIP gateway, IP router, IP PBX – all in one package

  • Call recording to a USB ash drive

  • Microphone connection for base operation

  • Serial pass-through function

  • Router functions with VPN tunnel

  • Half-width 1U form design

  • Online firmware update

  • SYSLOG, SNMP, SSH and other management features

  • Administrator password and security slot

Specifications

Weight:
4 lb (1.8 kg)

Dimensions:
8.4 x 1.4 x 10.6 in (213 x 36.8 x 270 mm)

Power Supply:
12 VDC ± 10%, 4 A (max)

Operating Temperature Range:
32ºF to 104ºF (0ºC to 40ºC)

Operating Humidity:
5–95%

LAN/WAN:
RJ-45 type x 1 (Auto MDI/MDI-X) 10BASE-T/100BASE-TX/1000BASE-T
*WAN/LAN port selectable

USB:
Host Interface: USB 3.0 Standard A receptacles x 3
Console Interface: USB 2.0 mini B receptacles x 1

Network:
4G Bands: LTE B1, B3, B7, B8, B20 (EUR); LTE B2, B4, B12 (FCC)
3G Bands: W-CDMA B1, B8 (EUR); W-CDMA B2, B5 (FCC)

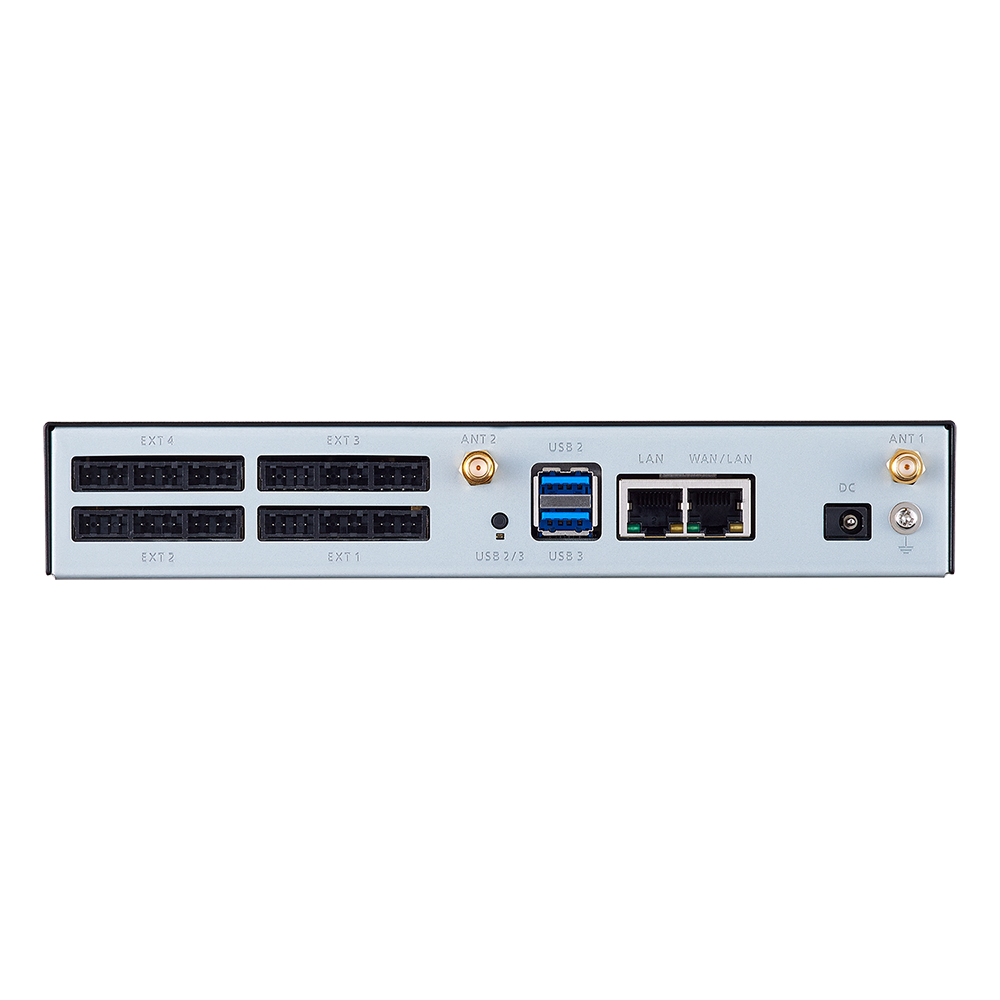

External Port:
Connectors: 2.54 mm (0.1 in) pitch quick connector (4 terminals x 3) x 4
Audio Input: -10 dBs/-40 dBs selectable; Input impedance 10 kΩ unbalance
Audio Output: 0 dBs/–20 dBs selectable, 600 Ω load unbalance/8 Ω 1 W speaker
Control Input: Low voltage contacts (3.3 VDC/ 1 mA); Voltage input (3–16 VDC)
Control Output: No voltage contacts (30 VDC/ 100 mA); Open collector (3–16 VDC/ 10 mA)

Regulatory Compliance:
FCC Part 15 Class B/ ICES003, Part22, Part24, Part27, EN301 489-1, EN301 489-19, EN301 489-52, EN301 908-1, EN301 908-2, EN301 908-13, EN303 413, EN62479, EN62311, EN62368-1

Product Codes

  • Mfr Part No:VEPG4
  • EDMO #:VEPG4
  • Brand:ICOM AMERICA
  • Category:Airband Communications
  • SCHEDULE B CODE:8518.10.0000
