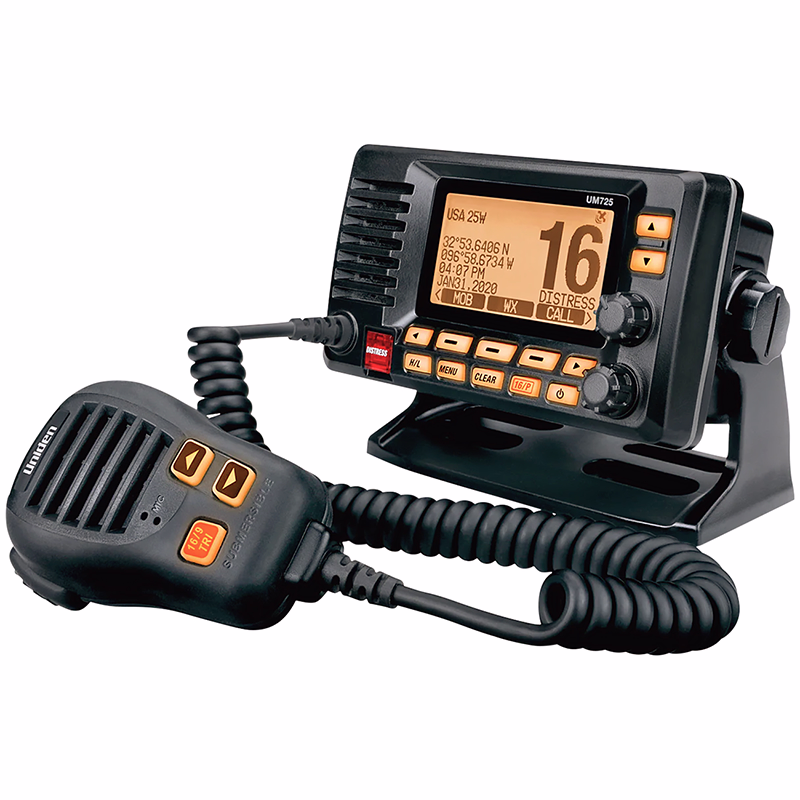

UM725 Fixed Mount Marine Radio | Includes GPS & Bluetooth, 25 watt, Black
Product Description
The UM725 25-watt, fixed mount marine radio allows users to send private text messages using the VHF marine radio. Instead of broadcasting to all boats in the area, users can enjoy the privacy of boat to boat text messaging. The UM725 radio features IPX8 submersible rating, NOAA weather channels, DSC distress send and receive, and equipped with a speaker microphone.
This UM725 VHF marine radio (EDMO# UM725GBTBK) is a fixed mount, 25-watt radio with GPS & Bluetooth, colored black.
Features
Cover all USA, Canadian, and International marine channels
Full Class D, DSC compliant (meets ITU-R 493-14, -15, IEC 62238 standards)
1-watt/25-watt transmit power (transmits at full power ensuring maximum range)
Large LCD measuring 68 mm x 38 mm
Send private text messages over marine VHF channels to other equipped radios
Includes NOAA weather channels to provide users with weather alerts
Speaker microphone with UP, DOWN, PTT, 16/9/TRI keys
Optional remote microphone for a second radio station
NMEA0183 input and output sends and receives GPS, DSC information to other devices
IPX8 waterproof rating provides submersion up to 4.9-feet for 30-minute with no water intrusion
Specifications
Weight:
35.3 oz (1 kg) with microphone
Size (W/O Heatsink & Knobs):
3.38 x 5.94 x 2.50 in (85.7 x 150.7 x L:63.5 mm)
Frequency Range Transmitter:
156.025 MHz — 161.600 MHz / Receiver 156.050 MHz — 163.275 MHz
Display:
full dot matrix LCD with amber & white color back light
Power Supply Voltage:
13.8V (10.5V — 16V) negative ground only
Antenna Impedance:
50Ω
Microphone:
electret type
Speaker:
4Ω, 4W (radio) / 0.5W (speaker mic)
Water Protect Class:
IPX8
Operating Temperature Range:
5°F to 131°F (-15°C to 55°C)
Storage Temperature Range:
-22°F to 140°F (-30°C to 60°C)
GPS (UM725GBT/UM725G Only)
Acquisition Sensitivity:
CN 40dB (@GPS anechoic box input -103dBm)
Acquisition Time 30sec.:
(@GPS anechoic box input -103 dBm) Limit 90 sec.
GPS External Antenna
Connector:
3.3V / 20mA MAX
Bluetooth (UM725GBT Only):
Sensitivity:
(Ber≤10-e5) -90 dBm (BT anechoic box input -60 dBm,1 Mbps BLE IDLE Tx)
Class Version:
BLE / V5.0
Product Codes
- Mfr Part No:UM725GBT BK
- EDMO #:UM725GBTBK
- Brand:UNIDEN
- SCHEDULE B CODE:9999.99.9999
- SCHEDULE B CODE:9999.99.9999
