UC-584 Universal Transponder Antenna Coupler | Dual Antenna Kit
Product Description
The UC-584 universal transponder antenna coupler provides reliable Effective Radiation Power (ERP) and transponder Minimum Trigger Level (MTL) testing in high multi-path ramp and hanger environments. This antenna coupler provides 20 dB of transponder antenna isolation, ensuring airborne TCAS systems and SSR ground stations do not see UUT transponder altitude replies under test conditions where air-data system is pressurized to flight levels. This innovative design includes an integral positioning slot that improves the ability to replicate measurements and produce repeatable ERP tests. The UC-584 can be connected to the IFR 6000/6015 direct connect port.
Features

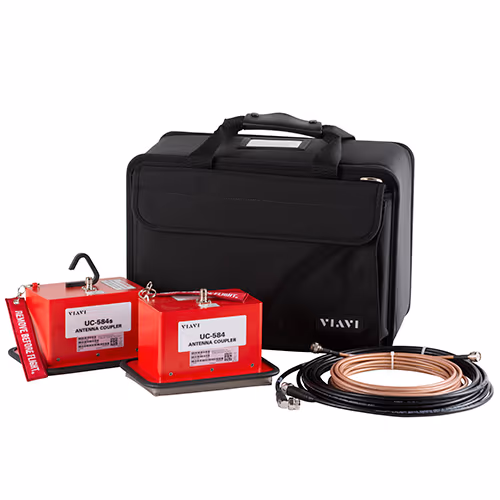

This universal transponder dual antenna coupler kit (EDMO# UC-584DUAL) includes:

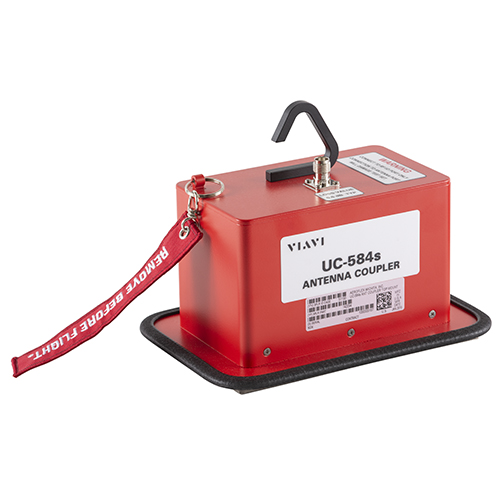

- UC-584 L-Band Coupler (with clamp)

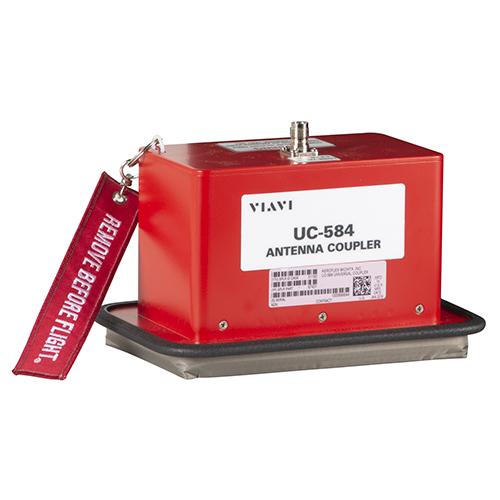

- UC-584 L-Band Coupler (top mount)
- 25-foot TNC-to-TNC coaxial cable
- 25-foot TNC-to-TNC coaxial cable (right angle)
- Soft case
- ID card
- Application notes & Instruction sheet
Features:
- Reliable FAR Part 43 Appendix ‘F’ ERP and MTL testing in high multi-path environments
- Provides >20 dB of antenna isolation for Mode S transponder altitude and diversity tests
- <1 dB repeatability
- Rugged design for ramp use
- Fits most ‘Shark Fin’ L-Band antennas
- Quick action antenna grip/release action
Specifications
Weight:
2 lb (0.9 kg)
Dimensions:
5.25 x 5.75 x 8.25 in (13.3 x 14.6 x 20.9 cm)
Frequencies:
1030 MHz, 1090 Mhz
Return Loss:
>7.71 dB at both the antenna under test input
Insertion Loss:
0.6 dB ±0.5 dB
Repeatability:
<1 dB
Isolation:
>20 dB
Connector:
TNC female
Product Codes
- Mfr Part No:112349
- EDMO #:UC-584DUAL
- Brand:VIAVI
- Category:Flight Line Test Sets
- ECCN:7B994
- SAP:112349
- SAP:112349
- SCHEDULE B CODE:9030.90.8940
