AV-20-E + echoESX Bundle
Product Description

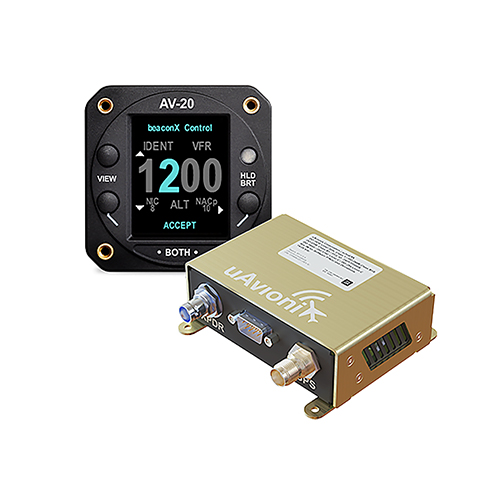

This bundle (EDMO# UAX9012101) packages together the AV-20-E panel display and the echoESX compact mode S ADS-B out transponder.
The AV-20E incorporates a full-color display, bezel-mounted light sensor for automatic display brightness, and an internal battery for operation in the event of power loss. The unit is designed to fit a standard 2¼ inch mounting hole and is approximately 2 inches deep. Dual ¼ inch quick-connect fittings are provided for pitot and static connections on the rear of the unit.
The echoESX EXP is a complete remote mount system designed to meet the Transponder and Automatic Dependent Surveillance – Broadcast (ADS-B) requirements for operating in controlled airspace. The system is fully configurable as any combination of Mode A, Mode C, Mode S transponder (DO-181e Level 2els, Class 1) and 1090MHz Extended Squitter ADS-B (DO-166b Class B1S) transmitter. The echoESX also includes an SBAS Global Positioning System (GPS) position source receiver (DO-229e Beta 1).
Features
AV-20E Features:
- AoA Display (Voice Alerting & Peaks)
- G-Meter Display (Voice Alerting & Peaks)
- Attitude (Roll / Pitch)
- Slip / Skid Indication
- Clock (GMT / Local)
- Outside Air Temperature (C / F)
- Bus Voltage Display
- Dual User Timers (Count Up / Down)
- Engine Run Timer
- Flight Timer
- Density Altitude Display
- True Airspeed Display (Kts / Mph)
- Internal Battery Operation (30 Min)
echoESX EXP Features:
- Multiple control head options include the AV-20-E, AV-30-C, or AV-30-E
- Meets the U.S. ADS-B Out equipment performance requirements of 14 CFR 91.227
- BNC 1030/1090MHz Antenna Connector
- TNC GPS Antenna Connector
Specifications
AV-20E:
Specifications
Weight:
0.25 lb
Dimensions:
2.4 x 2.4 x 1.2 in.
Display Diagonal:
1.8 in.
Contrast Ratio:
500
Brightness:
1000 cd/m2
Viewing Angle:
Left/Right: 60º
Up: 45º
Down: 10º
Backlight Lifetime:
50,000 Hrs
Input Voltage:
10 to 32 VDC (nominal)
Input Voltage Max:
60 VDC
Input Power:
3 Watts (0.25 Amps @ 12VDC) (nominal)
Input Power Max:
6 Watts (0.50 Amps @ 12VDC)
Electrical Connector:
9 pin male D-Sub
Pneumatic Connectors:
1/4 in. OD quick connect
Mounting:
(4x) #6-32 machine screws
Case Material:
High impact ABS plastic
Operating Temperature:
-20°C to 55°C
echoESX EXP:
Specifications
Weight:
175 g
Size:
36 x 101 x 103 mm
Input Power:
9–30.3 VDC; 1.5 W Continuous On/Alt.; 4 W Peak (8 ms maximum)
SIL/SDA:
3/2
Operating Temperature:
-35°C to 70°C
MTL 1030MHz:
-74 dBm ± 3dB
1090 Transmit Power:
250 W Nominal
GPS L1C/A w. SBAS:
12 GPS Channels, 3 SBAS Channels
HPA/VPA:
5 m/7 m
Velocity Accuracy:
3 m/s
Time Accuracy:
30 ns
Update Rate:
5 Hz
Acquisition Sensitivity:
-148 dBm
Tracking Sensitivity:
-167 dBm
Altitude Source:
Requires AV-20-E, AV-30-C, or AV-30-E
Baudrate:
1,200–115,200 bps
Product Codes
- Mfr Part No:UAX-90121-01
- EDMO #:UAX9012101
- Brand:UAVIONIX
- Category:Transponders, Altitude Encoders & Serializers
