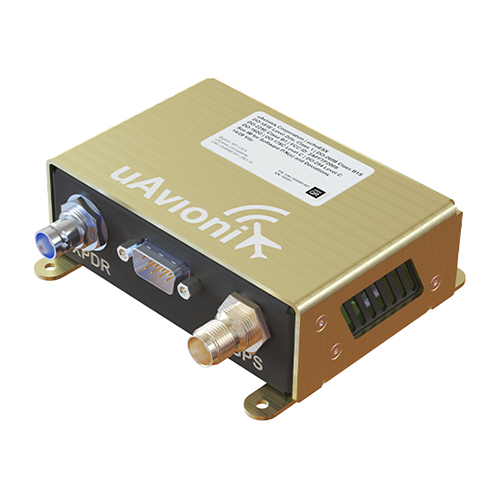

echoESX EXP | Experimental Remote Mode S ADS-B Transponder + GPS Receiver
Product Description
The echoESX EXP is a complete remote mount system designed to meet the Transponder and Automatic Dependent Surveillance – Broadcast (ADS-B) requirements for operating in controlled airspace. The system is fully configurable as any combination of Mode A, Mode C, Mode S transponder (DO-181e Level 2els, Class 1) and 1090MHz Extended Squitter ADS-B (DO-166b Class B1S) transmitter. The echoESX also includes an SBAS Global Positioning System (GPS) position source receiver (DO-229e Beta 1).
Features
- Multiple control head options include the AV-20-E, AV-30-C, or AV-30-E
- Meets the U.S. ADS-B Out equipment performance requirements of 14 CFR 91.227
- BNC 1030/1090MHz Antenna Connector
- TNC GPS Antenna Connector
Specifications
Weight:
175 g
Size:
36 x 101 x 103 mm
Input Power:
9–30.3 VDC; 1.5 W Continuous On/Alt.; 4 W Peak (8 ms maximum)
SIL/SDA:
3/2
Operating Temperature:
-35°C to 70°C
MTL 1030MHz:
-74 dBm ± 3dB
1090 Transmit Power:
250 W Nominal
GPS L1C/A w. SBAS:
12 GPS Channels, 3 SBAS Channels
HPA/VPA:
5 m/7 m
Velocity Accuracy:
3 m/s
Time Accuracy:
30 ns
Update Rate:
5 Hz
Acquisition Sensitivity:
-148 dBm
Tracking Sensitivity:
-167 dBm
Altitude Source:
Requires AV-20-E, AV-30-C, or AV-30-E
Baudrate:
1,200–115,200 bps
