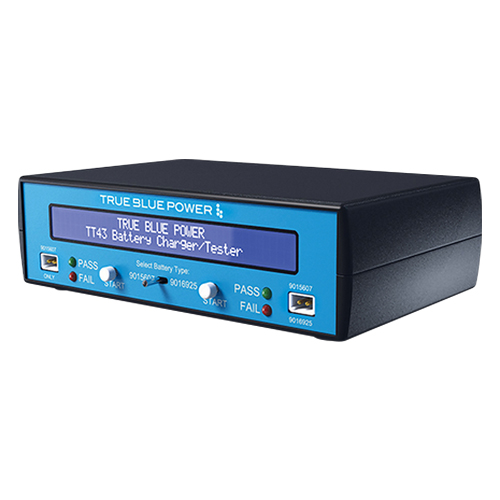

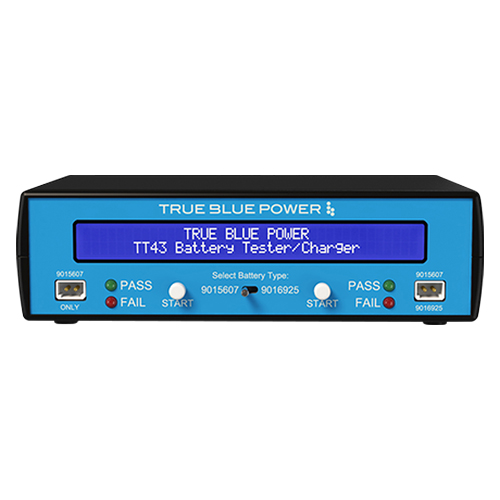

TT43 Battery Tester and Charger
Product Description
The TT43 Battery Tester and Charger performs automatic capacity testing and recharges batteries in five hours or less — up to two batteries at once. Featuring a dot-matrix LCD display and microprocessor control, the TT43 provides test status information and accurate results.
Features
- Tests and charges the removable battery of the 4300 Series and TS420 Series Emergency Power Supply
- Alphanumeric dot-matrix, LCD display provides dynamic test status and measurements
- Test/Charge one or two batteries simultaneously in less than 5 hours
- Microprocessor control adjusts test to accurately compensate for acceptable battery variation
- Bright LED lights provide quick pass/fail results
- Can float charge batteries indefinitely to maintain an always-ready state
- Designed and built in Wichita, Kansas, USA
Specifications
Weight:
1.2 lb
Dimensions:
4.26 x 8.08 x 2.40 in
Input Power:
24 VDC – 30 VDC, 1.0 A, maximum
Power Supply:
Wall-outlet AC adapter, included
Battery Type:
Selectable between 0.5 Ah or 2.5 Ah batteries
Battery Detection:
Load sensing recognizes batteries when connected to the tester
Protection:
Short-circuit and time-out for failed batteries
Mating Connector:
MCIA P/N 9015904, included
Product Codes
- Mfr Part No:6430043-1
- EDMO #:TT43
- Brand:TRUE BLUE POWER
- Category:Auxiliary Power Units & Battery Chargers
