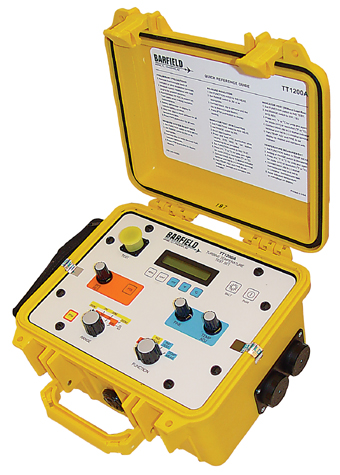

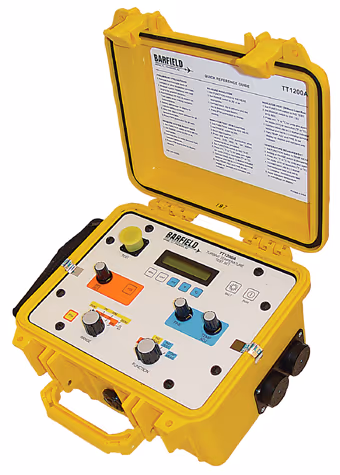

TT1200A Digital Turbine Temperature Test Set
Product Description
The TT1200A is specifically designed to accomplish all requirements for testing the aircraft Chromel-Alumel (K type) turbine temperature measuring systems. The tester can measure resistances down to 0.001W, measure insulation up to 200 MQ, perform indicator run-outs with a resolution of .1ºC or 1ºC and a range of 1372ºC, and can also display the equivalent ºF or millivoltages and may be used as a master indicator as well.
Features
- Self-contained, self-monitoring portable temperature and resistance measuring
- Microprocessor based
- Calibration date from display with user alerts to approaching cal date
- Backlit 16 character alphanumeric display with user prompts
- True 4-wire resistance measurements
- Celsius, Fahrenheit, and equivalent millivoltage displays
- Temperature range to 1372ºC
- Automatic ambient test point temperature correction
- Powered from long lasting C cell batteries with Auto-Off feature
- Timed measurement with display hold feature for resistance and insulation functions
Specifications
Weight:
7.3 lb
Dimensions:
11 x 10 x 7 in.
Temperature measurement:
Range: -200 to 1372 °C
Accuracy: ± 0.3 °C (Typ at 25 °C)
Resistance measurement:
20W: 0 - 19.999W 0.001W increments
200W: 0 - 199.99W 0.01W increments
2KW: 0 - 1.9999KW 0.1W increments
20KW: 0 - 19.999KW 1W increments
Accuracy: ± 0.05 % of reading ± 2 counts
Insulation measurement:
200KW:0 - 199.9KW 0.1KW increments
2MW: 0 - 1.999MW 1KW increments
20MW: 0 - 19.99MW 10KW increments
200MW: 0 - 199.9MW 1001KW increments
Excitation: 45 VDC Accuracy: ± 5 % of reading ± 2 counts
Operating temperature:
-10 to 50ºC
Product Codes
- Mfr Part No:101-00930
- EDMO #:TT1200A
- Brand:BARFIELD
- Category:Airframe/Powerplant Test Sets
