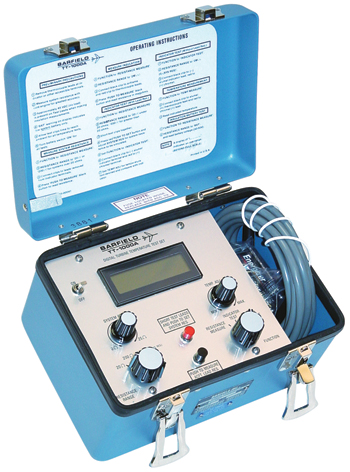

TT-1000A Digital Turbine Temperature Tester

TT-1000A Digital Turbine Temperature Tester

BARFIELD

Call For Pricing
In stock
EDMO # TT-1000A
MFR Part # 101-00901
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The TT1000A is a completely self-contained, battery powered, aircraft turbine temperature system tester capable of measuring system lead resistance, insulation, and performing indicator run-outs with a range up to 1000 C°. The unit was specifically designed to meet all requirements for testing aircraft Chromel/Alumel (CH/AL) turbine temperature measuring systems and provides an accurate display of thermocouple outputs in degrees Celsius (°C).

Features

  • Measures resistance of thermocouple, rings and system lead circuits
  • For use with bench testing indicators
  • Automatic temperature compensation test leads
  • Thermo couple and lead resistance measurements to 0.01
  • Insulation measurements up to to (2) megohms
  • Large, 9 mm (0.35 in) high character, 3-1/2 digit liquid crystal display
  • Measures/displays CH/AL thermocouple values in degrees Celsius (ºC)
  • Simulates CH/AL thermocouple w/wo simulated system lead resistance
  • Pre-programmed legends

Also Purchased

Specifications

  • Weight:
    4 lb
  • Dimensions:
    8 x 5.5 x 5 in
  • Range:
    0 C° to 1,000 C° certified, -60 C° to 1,160 C° extended
  • Accuracy:
    Typical measurement error at ambient (25ºC) less than ± 1ºC

Related Products

Product Codes

  • Mfr Part No
    101-00901
  • ECCN
    7B994
  • NSN
    4920-01-514-9947
  • SCHEDULE B CODE
    9030330080
  • SIN
    334515
