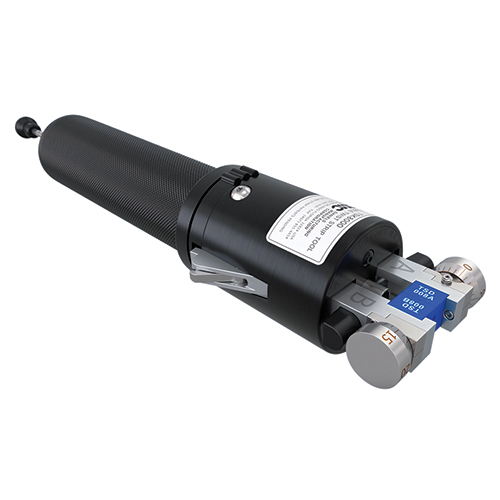

TSK8000 Twist-Strip
Product Description
The TSK8000 Twist-Strip™ tool is designed to make precise cuts to the jacket of shielded, multi-conductor, twisted cable and provide a quick, safe, accurate and repeatable method for preparing avionic wiring harnesses as well as other cable types. Precise blade adjustment, zero friction roller bearing design, articulating/locking arms, and interchangeable dies make the Twist-Strip a user-friendly and efficiently designed tool.
The TSK8000 uses custom dies (sold separately) with adjustable cutting blades which compensate for irregularities in the cables jacket. The dies are engineered with a track that match the contour of the cable's outer jacket to provide a controlled rotation of the tool and guides the cutting blades along the length of the cable.
Die assemblies for the TSK8000: TSD1090, TSD1080, TSD3120, TSD3150, TSD3130, TSD2120, TSD2140
Features
- Accepts twisted, multi-conductor, coax, and rounded cable
- Rugged and lightweight construction
- Adjustable blade depth settings allows for precision cuts
- Micrometer style blade adjustment knobs
- Removable and replaceable die sets with built-in countered cable track (sold separately)
- Adjustable cable strip length
- Locking tool arms
- Locking head
- Free rotating core
- Positive die closure
Specifications
Weight:
0.81 lb
Dimensions:
1.75 x 9.75 in
Acceptable Cable Diameters:
0.0625 – 0.187 in
Arm Control Lever Force:
4.4 lb
Arm Control Lever Length:
1 in
Cable Outside Diameter:
0.0625 – 0.187 in (1.59 – 4.75 mm)
Product Codes
- Mfr Part No:TSK8000
- EDMO #:TSK-8000
- Brand:DANIELS MFG
- Category:Tools & Cases
