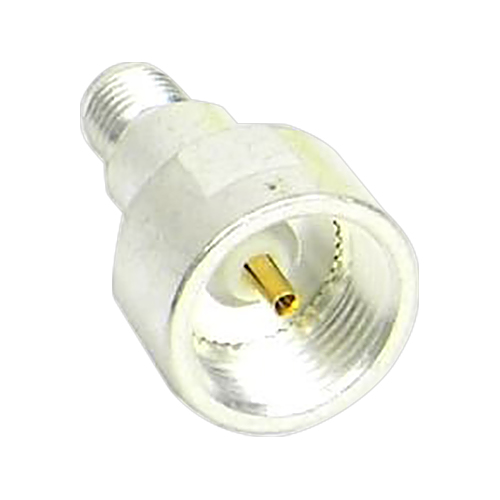

TPI-3009 SMA Female Connector

TPI-3009

TEST PRODUCTS INTERNATIONAL (TPI)

CALL FOR PRICING
Out of Stock
EDMO#TPI-3009
MFR#TPI-3009

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

This SMA Female Connector (EDMO# TPI-3009) is included in the TPI-3000A and TPI-5000A Universal Coaxial Adapter Kits. This connector can be used with TPI Universal Cables to build custom patch and test cables and has a silver-plated brass body with a gold-plated phosphor bronze contact.

Features

  • Simply screw on this connector to a universal interface with no soldering or crimping needed
  • Can be used over and over to fit and assist customizing the installation
  • Works with universal cables GEX-60 (36″), GEX-48 (48″), and GEX-75 (72″)
  • Connector body is silver-plated machine brass with PTFE insulation

Specifications

Impedance:
50 Ω

Frequency Range:
DC – 3 GHz

Voltage:
335 Vrms

VSWR:
< 1.3:1

Insertion Loss:
< -0.2 dB

Product Codes

  • Mfr Part No:TPI-3009
  • EDMO #:TPI-3009
  • Brand:TEST PRODUCTS INTERNATIONAL (TPI)
  • Category:Electrical Interconnect
