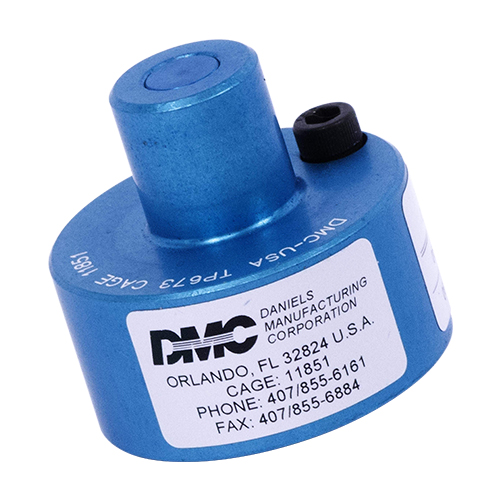

TP673 Single Position Head
Product Description
This single position head (EDMO# TP673) is used with the AF8, AFE8B, and WA27F tool frames and adapts the tool frame to a particular application. The data plate on the positioner designates which contacts the single position head accommodates and suggested selector depth setting for the wire size being used.
Features
Contacts Serviced:
- 06-134724-000 Size 20–16 AWG Fenwall Contacts
- 06-134724-003 Size 22–20 AWG Fenwall Contacts
Compatible Tools:
- AFM8 Adjustable Miniature 8 Indent Lower Range Crimp Tool
- AFE8B Battery Crimp Tool
- WA27F Pneumatic Crimp Tool
Specifications
Position Head Dimensions:
1.490 x 1.375 in
Locator Hole Dimensions:
0.070 in
Contact Sizes:
22–16 AWG
Product Codes
- Mfr Part No:TP673
- EDMO #:TP673
- Brand:DANIELS MFG
- Category:Tools & Cases
