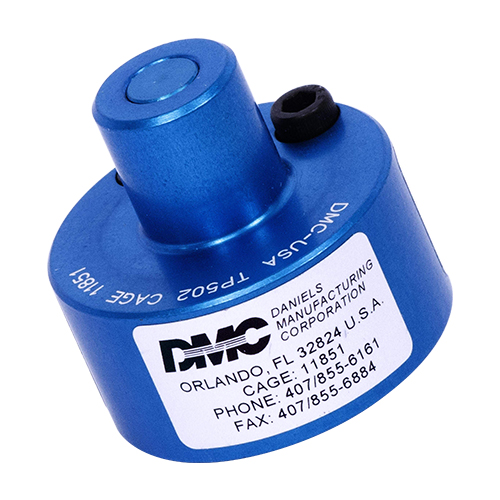

TP502 Single Position Head
Product Description
This single position head (EDMO# TP502) is used with the AF8, AFE8B, and WA27F tool frames and adapts the tool frame to a particular application. The data plate on the positioner designates which contacts the single position head accommodates and suggested selector depth setting for the wire size being used.
Features
Contacts Serviced:
- 019-0249-000 Size 24–20 AWG Viking Contacts
- 019-0248-000 Size 20–16 AWG Viking Contacts
- 019-0248-000 Size 12 AWG Viking Contacts
Compatible Tools:
- AFM8 Adjustable Miniature 8 Indent Lower Range Crimp Tool
- AFE8B Battery Crimp Tool
- WA27F Pneumatic Crimp Tool
Specifications
Position Head Dimensions:
1.490 x 1.375 in
Locator Hole Dimensions:
0.116 in
Contact Sizes:
24–12 AWG
Product Codes
- Mfr Part No:TP502
- EDMO #:TP502
- Brand:DANIELS MFG
- Category:Tools & Cases
