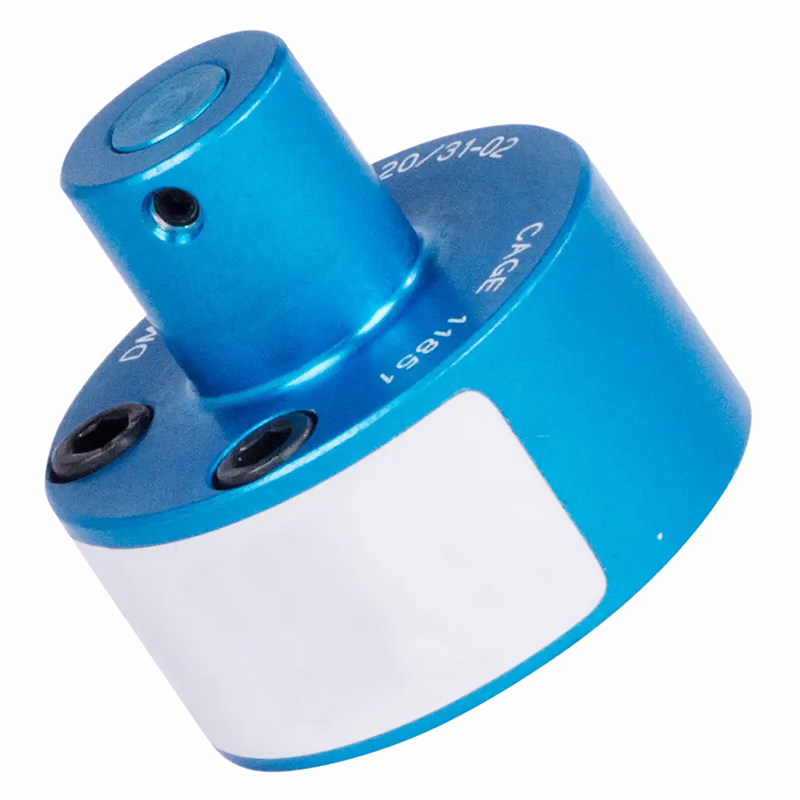

P360 Single Position Head for AF8

P360 Single Position Head for AF8

DANIELS MFG

CALL FOR PRICING
Special order
EDMO#TP360
MFR#TP360

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

M22520/1-09 (TP360) single position head is used with the M22520/1-01 (AF8) tool frame and adapts the tool frame to a particular application. The data plate on the positioner designates which contacts the single position head accommodates and suggested selector depth setting for the wire size being used.

Can also be used with these DMC Crimp Tools:
WA27F Pneumatic Crimp Tool Frame
AFE8B Battery Crimp Tool Frame

Features

Qualification:
Mil-Spec/AS Qualified

Crimp Applications:
Machined Contacts

Crimp Tool Type:
Positioners

Positioner:
TP

Product Codes

  • Mfr Part No:TP360
  • EDMO #:TP360
  • Brand:DANIELS MFG
  • Category:Tools & Cases
  • ECCN:EAR99
  • ECCN:EAR99
  • MIL SPEC:MS22520/1-09
  • MIL SPEC:MS22520/1-09
  • SCHEDULE B CODE:8203.20.6060
  • SCHEDULE B CODE:8203.20.6060
