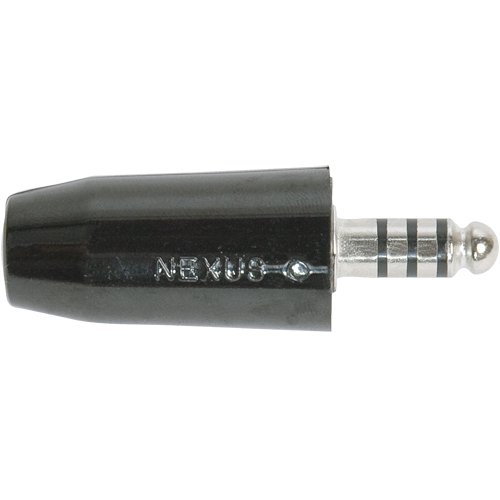

TP-102 4-Conductor Telephone Plug


NEXUS

Call For Pricing
In stock
EDMO # TP-102
MFR Part # TP-102
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The TP-102 telephone plug is a four-conductor plug molded into a plastic body and also designed to accommodate larger cable diameters. Mates with Nexus series TJ-120, TJ-102, and TJ-101 jacks.

Features

  • 4-Conductor telephone plug
  • Nickel-plated brass contacts
  • Mates with Nexus series TJ-120, TJ-102, and TJ-101 jacks
  • Includes: TP-102-18 shell, TP-102-20 crimp sleeve, TP-102-16 terminal

Also Purchased

Specifications

  • Dimensions:
    0.781 x 2.312 x 0.716 in
  • Number of Conductors:
    4
  • Contact Material:
    nickel-plated, brass
  • Standard:
    MIL-C-9177
  • Solder Contact Terminals:
    pre-tinned over nickel plated
  • Contact Resistance:
    ≤ 0.02 Ω
  • Insulation Resistance:
    ≥1,000 MΩ
  • Dielectric Withstanding Voltage:
    ≥ 500 V RMS
  • Insertion Force:
    13 lb, maximum
  • Withdrawal Force:
    6 to 10 lb

Related Products

Product Codes

  • Mfr Part No
    TP-102
  • ECCN
    EAR99
  • MIL SPEC
    M9177/1-1 / MIL-C-9177
  • SCHEDULE B CODE
    8536.69.4020
