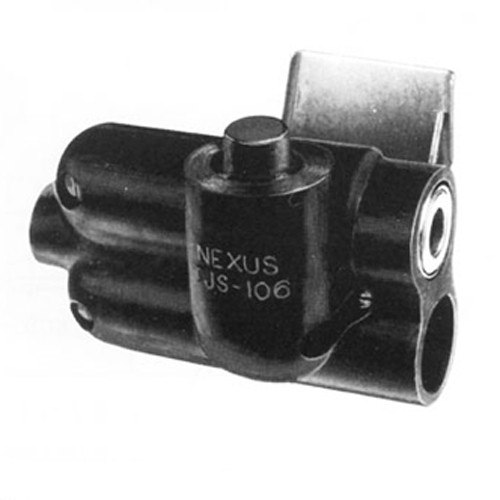

TJS-106 Biaxial Shielded Telephone Jack Switch | Includes Clothing Clip
Product Description
The TPS-106 telephone jack switch is a six-conductor, biaxial shielded and features a push switch for activation. Mates with Nexus TP-106 plug.
Features
- 6-conductor, biaxial shielded
- Mates with Nexus TP-106 plug
- Includes TJS-104-3A clothing clip, (2) TJ-106-14 nut, (2) TJ-106-13 washer , TJ-106-10A, strain relief, (2) TJS-106-19 screws, TJS-106-1 & -2 shell, TP-106-5 shield, TJ-106-9 jack assembly, (2) TJ-106-10A screws
Specifications
Dimensions:
2.281 x 2 x 2.641 in
Number of Conductors:
6
Contact Diameter:
0.285 in
Shell Material:
plastic
Contact Material:
nickel-plated, beryllium copper
Solder Contact Terminals:
pre-tinned over nickel plating
Contact Resistance:
≥0.02 Ω
Insulation Resistance:
≥1,0000 mΩ
Dialectic Withstanding Voltage:
≥500 V RMS
Insertion Force:
13 lb, maximum
Withdrawal Force:
6 to 10 lb
Product Codes
- Mfr Part No:TJS-106
- EDMO #:TJS-106
- Brand:NEXUS
- Category:Electrical Interconnect
